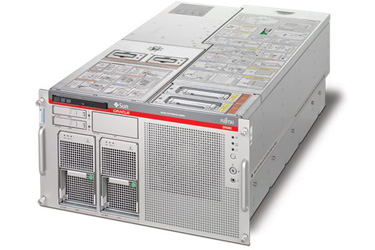

Sun M4000
| 整機信息 | |
| 機架類型 | 機架式 |
| 高度 | 6U |
| 處理器 | |
| 最多 4 個SPARC64 VII / VII+四核處理器 或 SPARC64 VI 雙核處理器 | |
| SPARC V9 體系架構，受ECC 保護 | |
| 每個 SPARC64 處理器的一級緩存 |
SPARC64 VII+：64 KB 數據緩存和64 KB 指令緩存 SPARC64 VII：64 KB 數據緩存和64 KB 指令緩存 SPARC64 VI：128 KB 數據緩存和128 KB 指令緩存 |
| 每個 SPARC64 處理器的二級緩存 |
SPARC64 VII+ 2.66GHz：11 MB 片上緩存 SPARC64 VII 2.53GHz：5.5 MB 片上緩存 SPARC64 VI 2.15GHz：5 MB 片上緩存 |
| 時鐘速度 |
SPARC64 VII+：2.66 GHz SPARC64 VII：2.53 GHz SPARC64 VI：2.15 GHz |
| 系統 | |
| CPU | 1個或2個CPU 板 (CMU)，每個板2個CPU |
| 主內存 | 每個系統最高 256 GB，使用8 GB DIMM （每內存板8個插槽，最多4個內存板） |
| I/O |
最多 5 個I/O 插槽，每個I/O 支架上有4 個PCIe 插槽和1個PCI-X 插槽 最多 25 個帶可選外部I/O 擴展單元的PCIe 或PCI-X 插槽 |
| 系統總線 | 一種高速、低延遲的互連系統總線，包含冗余數據、地址和響應crossbar |
| 系統總線帶寬（內存） | 32 GB/s peak，12.7 GB/s stream（復制） |
| 系統總線帶寬(I/O) | 8 GB/s peak |
| 用于系統管理的服務處理器 | |
| 最多 2 個動態域 | |
| 存儲 | |
| 啟動盤 | 最多 2 個內置2.5 英寸SAS 啟動磁盤 |
| 外部兼容性 | 將 SAN 或NAS 直接連接到Sun StorageTek 兼容磁帶庫、閃存陣列和磁盤陣列，包括StorageTek 3X00、5X00、6X00、9X00和Jx000 系列以及Sun Storage F5100 閃存陣列 |
| 資源管理 | |
| 動態域 | Oracle Solaris 10 Resource Manager，包括Oracle Solaris Containers |
| 軟件 | |
| 操作系統 |
SPARC64 VII+ （2.66GHz）：安裝維護更新8 （MU8）或更新版本和XCP 1100 的Oracle Solaris 10 （12/07）（更新4） SPARC64 VII （2.53GHz）：Oracle Solaris 10（8/07）* 或更新版本 SPARC64 VI （2.15GHz）：Oracle Solaris 10 （11/06）或更新版本 *Oracle Solaris 10（10/08）或Oracle Solaris 10（8/07）需要安裝Oracle Solaris 10 10/09 補丁包和Sun Alert Patch Cluster |
| 語言 | C, C++, Pascal, FORTRAN, Java |
| 網絡 | ONC/NFS, TCP/IP, SunLink, Netware |
| 系統監測 |
Sun Management Center Oracle Solaris Web Start Solstice Domain Manager Solstice Enterprise Manager Solstice Backup xVM Ops Center |
| 增值軟件 |
VERITAS File System VERITAS Volume Manager Sun Cluster Sun HPC ClusterTools Sun Java Enterprise System |
| 環境 | |
| 交流電源 | 100–240 VAC 單相（50/60Hz），每根電源線12A，一根或兩根電源線 |
| 插頭 | NEMA-L6-20P（美國）或IEC 309-IP44（國際）IEC 60320 C19連接器 |
| 插座類型 | IEC 60320 C20 |
| 工作溫度 | 5°C 至35°C （41°F 至95°F），相對濕度20%至80%，非冷凝 |
| 非工作溫度 | -20°C 至60°C （-4°F 至140°F） ，相對濕度 8%至93% ，非冷凝 |
| 高度 | 最高 3,000 米（9,842 英尺） |
| 相關規定 | |
| 安全性 | CSA/UL-60950, EN60950, IEC950 CB Scheme with all national deviations |
| RFI/EMC |
EN55022/CISPR22 A 類 FCC CFR 47 第15 部分A 類 EN61000-3-2 EN61000-3-3 |
| 抗干擾性 |
EN55024 EN61000-4-2、-4-3、-4-5、-4-6、-4-8 和-4/11 |
| 管制標志 | CE、FCC、ICES、C-Tick、VCCI、GOST-R、BSMI、MIC、CSA/UL |
| 其他標志 | WEEE 和中國 RoHS |
| 主要RAS 特性 |
端到端 ECC 保護 保證數據路徑完整 自動恢復指令重試 總體 SRAM 和寄存器保護 動態一級緩存和二級緩存大幅降級 ECC 和擴展 ECC 內存保護、內存鏡像及預測性自我修復 故障隔離動態域 動態重配置 自動診斷和恢復 聯機升級 磁盤、風扇和電源的并行維護 冗余網絡連接 動態操作系統升級 日志文件系統 固化 I/O 驅動程序 動態單核或 CPU 脫機 內存頁退役 集群支持 |
| 尺寸和重量 |
高度 26.3厘米（10.34 英寸） 寬度 44.4厘米（17.48 英寸） 深度 81.0厘米（31.9 英寸） 重量 84千克（185 磅） |
| 配件信息 | ||
| 型號 | PN號 | 描述 |
| CPU | ||
| SELX1A1Z | 375-3477 | 2 × SPARC64 VI 2.1GHz CPU ModuleL |
| SELX1B1Z | 375-3568 | 2× SPARC64 VII 2.4GHz CPU ModuleL |
| 系統板 | ||
| 541-0891 | Power and I/O Backplane | |
| SEFX61Z |
541-0929 541-0933 |
PCI-X Cassette |
| SEMX61Z |
371-2217 541-2240 |
I/O Unit |
| 內存 | ||
| 371-1899 | 1GB DDR2-533 1-Rank DIMM | |
| 371-1900 | 2GB DDR2-533 2-Rank DIMM | |
| 371-1901 | 4GB DDR2-533 2-Rank DIMM | |
| 371-4236 | 2GB DDR2-533 1-Rank DIMM | |
| SELX2A1Z | 8 × 1GB Memory Expansion X-optionL - Includes 8 (371-1899) DIMM modules | |
| SELX2B1Z | 8 × 2GB Memory Expansion X-optionL - Includes 8 (371-1900) DIMM modules | |
| SELX2B2Z | 8 × 2GB Memory Expansion X-optionL - Includes 8 (371-4236) DIMM modules | |
| SELX2C1Z | 8 × 4GB Memory Expansion X-optionL - Includes 8 (371-1901) DIMM modules | |
| SELX2E1Z | 4 × 1GB Memory Expansion X-optionL - Includes 4 (371-1899) DIMM modules | |
| 硬盤 | ||
| 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive | |
| 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive | |
| 390-0377 | Hitachi HUC101414CSS300 (146.8GB - 10000 RPM SAS) Disk Drive | |
| 540-7151 | 146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets | |
| SELX3E11Z | 390-0449 | Seagate ST93000SSUNG (300GB - 10000 RPM SAS) Disk Drive |
| SELX3E11Z | 540-7903 | 300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
| SEPX3A11Z | 390-0213 | Seagate ST973401SS (73GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 390-0323 | Seagate ST973402SS (73GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 390-0374 | Fujitsu MBB2073RC (73.4GB - 10000 RPM SAS) Disk Drive |
| SEPX3A11Z | 540-7307 | 73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| SEPX3C11Z | 390-0324 | Seagate ST9146802SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEPX3C11Z | 390-0375 | Fujitsu MBB2147RC (146.8GB - 10000 RPM SAS) disk Drive |
| SEPX3C11Z | 390-0448 | Seagate ST9146803SS (146.8GB - 10000 RPM SAS) Disk Drive |
| SEPX3C11Z | 540-7777 | 146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks |
| 硬盤背板 | ||
| 541-0845 | Disk Backplane Assembly | |
| RAID卡 | ||
| SGXPCIESAS-R-EXT-Z | 375-3537 | 8-Port SAS RAID External HBA |
| SCSI卡 | ||
| SGXPCI2SCSILM320-Z | 375-3365 | PCI Dual Ultra320 SCSI Adapter |
| SG-XPCIE2SCSIU320Z | 375-3357 | Dual-Channel Ultra320 LVD PCI Express Adapter |
| SG-XPCIE8SAS-E-Z | 375-3487 | PCI Express 8-Port Host Adapter |
| 網卡 | ||
| X1027A-Z | 501-7283 | PCI Express Dual 10-Gigabit Ethernet Fiber |
| X4447A-Z | 501-7606 | Quad Gigabit Ethernet UTP x8 PCI Express Card |
| X5558A | 375-3301 | 10Gb/sec XFP Optical Transceiver Short Range |
| X5560A-Z | 375-3495 | 10Gb/sec XFP Optical Transceiver Long Range |
| X7280A-2 | 371-0905 | PCI-E Dual Gigabit Ethernet UTP |
| X7281A-2 | 371-0904 | PCI Express Dual Gigabit Ethernet MMF |
| 適配卡 | ||
| X1355A-2 | 375-3296 | Quad Port High Speed Serial Interface PCI-X, with 2M cable(HSI/U) |
| X2156A-2 | 375-3420 | Serial Asynchronous Interface PCI(SAI/P) 3.0 |
| X3000A | 530-3474 | DVI-A(M) to HD15F Adapter, 49mm |
| X6000A | 375-3424 | PCI Express Sun Crypto Accelerator 6000 |
| 顯卡 | ||
| X3000A | 375-3545 | XVR-300 x8 Graphics Accelerator Kit |
| X3777 | 375-3433 | XVR-200 Graphics Accelerator |
| X7296A | 375-3290 | XVR-100 Graphics Accelerator (64MB) |
| 光纖卡 | ||
| SG-XPCI1FC-EM4-Z | 375-3398 | 4Gb PCI-X Single FC Host Adapter |
| SG-XPCI1FC-QF4 | 375-3354 | 4Gb PCI-X Single FC Host Adapter |
| SG-XPCI2FC-EM4-Z | 375-3399 | 4Gb PCI-X Dual FC Host Adapter |
| SG-XPCI2FC-QF4 | 375-3294 | 4Gb PCI-X Dual FC Host Adapter |
| SG-XPCIE1FC-EM4 | 375-3396 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-EM8-Z | 371-4295 | 8Gigabit/Sec PCI Express Single Host Adapter |
| SG-XPCIE1FC-QF4 | 375-3355 | 4Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE1FC-QF8-Z | 371-4324 | 8Gigabit/Sec PCI Express Single FC Host Adapter |
| SG-XPCIE2FC-EM4 | 375-3397 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-EM8-Z | 371-4306 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF4 | 375-3356 | 4Gigabit/Sec PCI Express Dual FC Host Adapter |
| SG-XPCIE2FC-QF8-Z | 371-4325 | 8Gigabit/Sec PCI Express Dual FC Host Adapter |
| 電源 | ||
| 300-2009 | IOB 1.2V DC-DC Converter, DDC_A | |
| 300-2010 | IOB 3.3V DC-DC Converter, DDC_B | |
| 300-2011 | Type A202 AC Input Power SupplyL | |
| 501-7647 | IOB DC-DC Converter Riser, DDCR | |
| 電池 | ||
| 371-3253 | Lithium Ion Battery Module | |
| 光驅 | ||
| 541-0847 | DVD Assembly | |
| 磁帶機 | ||
| SELX9DT1Z | 541-0846 | DAT72 Tape Drive Assembly |
| 風扇 | ||
| 541-0573 | 172mm Fan Module, Fan_A | |
| 541-0905 | 60mm Fan, Fan_B | |
| 導軌 | ||
| 371-0096 | M4000 Rack Mount Kit | |
| 線纜 | ||
| 530-3415 | Operator Panel to Keyswitch Cable | |
| 530-3447 | Ground Cable | |
| 530-3478 | Z3 Fan PDB to Z1 Fan Backplane Cable | |
| 530-3479 | Z3 Fan PDB, Media, PSU Backplane Cable | |
| 530-3480 | Z3 Fan PDB to I/O Backplane Cable | |
| 530-3481 | Operator Panel to Fan Backplane Cable | |
| 530-3482 | I/O Backplane to DAT/HDD Cable | |
| 530-3483 | I/O Backplane to DVD Cable | |
|
537-1077 530-3965 |
Copper Cable 3M (for External I/O Expansion Unit) | |
| SELX8LK1Z |
530-3965 537-1077 |
Copper Link Cable, 4M |
| SELX9P11Z | 180-2005 | AC Input Power Cord, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m |
| SELX9P21Z | 180-2004 | AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m |
| SELX9P31Z | 180-2097 | M4000/M5000 2.5 Meter Rack Jumper Power Cable |
| SELX9P41Z | AC Input Cord, USA, Canada, IEC 320 C19 to NEMA 5-15P, 2.5 Meter | |
| SELX9P51Z | 180-2309 | Power Cord Jumper, 2.5M 13 Amp, IEC60320-C14 plug to IEC60320-C19 connector |
| SENX8FC1Z | 537-1100 | Fibre Channel Optical Cable 10M |
| SENX8FC2Z | 537-1070 | Fibre Channel Optical Cable 25M |
| SENX8LK2Z | 537-1100 | Fibre Channel Optical Cable 10M |
| SENX8LK3Z | 537-1070 | Fibre Channel Optical Cable 25M |
| X1355A-2 | 371-0982 | 2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable |
|
X3000A X4240A |
530-3998 530-3459 |
DMS-59 to Dual DVI-I Cable, 215mm |
| XMP10C-S |
537-1077 530-3965 |
Copper Cable 3M (for External I/O Expansion Unit) |
| 其它 | ||
| 330-4276 | CPU Board Filler Panel | |
| 330-4319 | Memory Filler Panel | |
| 541-0239 | Nemo Bracket | |
| 541-0481 | eXtended System Control Facility Unit, XSCFUL | |
| 541-0545 | Memory BoardL | |
| 541-0605 | Blank Disk Drive Filler | |
| 541-0850 | Operator Panel | |
| 541-0893 | Motherboard Cage, TMOBO, includes motherboard 501-7676 | |
| 541-0908 | Fan Backplane (172mm Fans) | |
| 541-0909 | Fan Backplane (60mm Fans)L | |
| 541-0920 | DVD Backplane | |
| 541-1448 | DAT Filler Panel | |
| 541-1501 | I/O Unit Filler Panel | |
| 541-3004 | Nemo Bracket with Insulator | |
| SEEX9FL1Z | 250-1824 | M4000 Air Filter |
| SELX3E11Z | 541-3004 | Nemo Bracket with Insulator |
| SELX8LK1Z |
501-7041 541-1451 |
Copper Link Card |
| SELX8LK1Z |
596-7158 596-5630 |
Copper Link Card Kit w/ 2 × Cards & 4M Cable |
| SELX9DT1Z | 263-3537 | DAT Removal Tool |
| SENX8LK2Z | 501-7040 | Fibre Link Card |
| SENX8LK2Z | 596-6258 | Fibre Link Card Kit w/ 2 × Cards & 2 × 10M Cables (for External I/O Expansion Unit) |
| SENX8LK3Z | 501-7040 | Fibre Link Card |
| SENX8LK3Z | 596-6228 | Fibre Link Card Kit w/ 2 × Cards & 2 × 25M Cables (for External I/O Expansion Unit) |
| SEPX3A11Z | 541-0239 | Nemo Bracket |
| SEPX3C11Z | 541-0239 | Nemo Bracket |
| SEPX3C11Z | 541-3004 | Nemo Bracket with Insulator |
| XMP10C-S | 501-7041 | Copper Link Card |
| XMP10C-S | 596-5630 | Copper Link Card Kit w/ 2 × Cards & 3M Cable (for External I/O Expansion Unit) |
| XRACK-EXTEND38RU | 341-3043 | 38RU Rack Extension |
| XRACK-EXTEND42RU | 341-3044 | 42RU Rack Extension |
