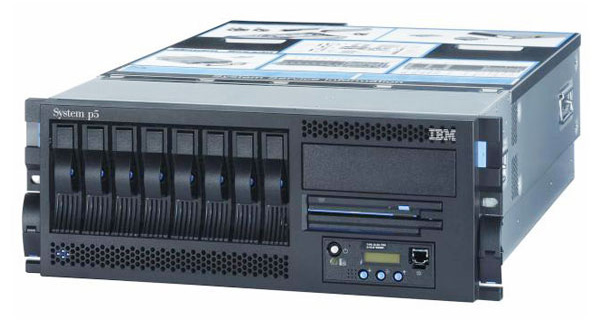

IBM P5 55A (9133-55A)
| 安裝類型 | 機架式 |
| 高度 | 4U |
| CPU信息 |
2 路或 4 路 64 位 2.1 GHz 的 POWER5+ 處理器， 4 路或 8 路 64 位 1.65 GHz 的 POWER5+ 的處理器。 |
| CPU類型 | POWER5+ |
| CPU插槽數 | 2 |
| CPU激活 | CPU需和對應的VPD卡配套使用，混插可能導致VPD卡鎖死，只能認出一路 CPU。 |
| 硬盤信息 | 最大硬盤背板數量為 2 |
| 最大硬盤數量 | 8 |
| 內存參數 | 內存插槽在CPU板上，單個CPU板有8個內存槽位，528MHz DDR2 的內存。 |
| 支持內存容量范圍 | 1GB-64GB |
| 內存插槽數量 | 16 |
| 內存是否需要激活 | 不需要激活 |
| 電源參數 | 100v 到 127v，或者 200v 到 240v 交流。 |
| 電源數量 | 2 |
| 介質托架 | 2 個細線電纜和 1 個半高介質托架。 |
| 適配器插槽 | 5 個 PCI-X 適配器插槽（4 個 133 兆赫，1 個 266 兆赫（DDR））。 |
| 端口 | 2 個 10/100/1000 以太網端口，可選的 2 千兆位光纖通道，萬兆以太網和 4x InfiniBand® 適配器，2 個 USB 端口，2 個 HMC 端口和 2 個串口。 |
| I/O適配器 | 雙通道 Ultra320 SCSI 控制器（僅限內部使用，可選 RAID）。 |
| I/O擴展 | 最多8個7311-D20 I/O擴展抽屜提供7個64位PCI-x插槽和多達12個磁盤支架。 |
| 發布日期 | 2005/10/14 |
| 下架日期 | 2008/12/12 |
| 服務截止日期 | |
| 操作系統 | AIX 5L Versions 5.2/5.3，SUSE LINUX Enterprise Server 9 f或 者 POWER (SLES 9) 或者更高版本，Red Hat Enterprise LinuX AS 3 f或 者 POWER Update 4 (RHEL AS 3) 或者更高版本。 |
| 產品尺寸 | 桌邊式：21.1"高x7.9"寬x30.7"長（533 毫米 x 201 毫米 x 779 毫米），機架抽屜：7.0"高（4U）x17.2"寬x27.0"長（178 毫米 x 437 毫米 x 731 毫米）。 |
| 產品重量 | 91.0 磅（41.4 千克） |
| FC號 | PN號 | 描述 |
| CPU | ||
| 8313 |
03N6500 03N6740 03N6951 10N6469 |
4-Way 1.5GHz POWER5+ Processor Card, 2x36 MB L3 cache, 8 Memory DIMM Slots |
|
8309 831A |
03N6734 10N6463 10N7778 |
2-Way 1.65GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
| 8312 |
03N6737 10N6466 |
2-Way 1.9GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
|
8285 53BA |
10N8123 | 4-core 1.65GHz POWER5+ Processor Card, 2 x 36MB L3 Cache, 8 Memory DIMM Slots |
|
8286 53BB |
10N8125 | 2-core 2.1GHz POWER5+ Processor Card, 36MB L3 Cache, 8 Memory DIMM Slots |
| 硬盤 | ||
| 1969 |
03N5267 03N6332 26K5162 26K5259 26K5574 52P8627 80P3408 80P6321 |
146.8 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1970 |
03N5277 03N6341 03N6342 24P3749 26K5164 26K5254 26K5570 52P8628 80P6324 80P6422 |
36.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1971 |
03N5281 03N5282 03N6346 03N6347 24P3750 26K5165 26K5255 26K5571 52P8629 80P6325 80P6424 |
73.4 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1968 |
03N5261 03N5262 03N6327 17R6169 26K5161 26K5250 26K5573 52P8626 80P3406 80P6320 |
73.4 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1972 |
03N5288 03N6351 03N6352 26K5166 26K5256 26K5572 80P3412 80P6426 |
146.8 GB 15,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 1973 |
03N5272 03N6337 03N6357 26K5163 26K5284 26K5575 80P3410 80P6322 |
300 GB 10,000 RPM Ultra320 SCSI Disk Drive Assembly |
| 3585 |
10N7195 10N7211 10N8578 |
300 GB 15K RPM SCSI Disk Drive |
| 內存 | ||
| 1932 |
12R8239 15R7170 |
4GB (2x2GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1934 |
12R8247 15R7172 |
8GB (2x4GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1930 |
12R8251 15R7166 |
1GB (2x512MB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 1931 |
12R8255 15R7168 |
2GB (2x1GB) DIMMs, 276-PIN, 533MHz DDR2 SDRAM |
| 8231 |
Memory Offering -- 32GB 64GB 96GB 128GB (Multiples of 4 of 2x4GB DIMMs) |
|
| 電源 | ||
| 7889 |
21P8243 39J2576 39J3741 39J5638 42R7854 42R8401 52P8646 52P8647 52P8654 52P8655 52P8656 52P8657 52P8658 52P8659 52P8660 52P8661 52P8662 52P8663 52P8664 52P8665 52P8666 52P8667 52P8668 97P5883 97P6760 |
Power Supply, 1475 watt AC, Hot-swap, Base and Redundant |
| 6289 |
23R0631 42R8662 |
Power Supply, 1050 Watt, DC, Hot-swap, Base and Redundant |
| 系統板 | ||
| 28D9 |
10N6472 32N1238 32N1239 |
System backplane |
| 28EC |
03N7294 03N4987 03N6954 03N6743 80P6381 80P6700 |
System backplane |
| 磁帶機 | ||
| 1992 |
19P4876 19P4877 19P4878 19P4879 19P4880 19P4897 19P4898 24R1988 24R1989 24R2134 24R2135 24R2137 24R2138 39J5601 52P8652 59P6746 95P1870 95P1871 96P1771 96P1772 97P3045 97P3046 |
IBM 80 160 GB Internal Tape Drive with VXA Technology |
| 1991 |
24R1986 24R1987 52P8638 95P1987 95P1989 |
36 72GB 4mm Internal Tape Drive |
| 1892 |
95P1975 95P1977 |
VXA-320 160 320GB Internal Tape Drive |
| 1997 |
96P1776 96P1777 |
200 400GB Half High Ultrium 2 Tape Drive |
| 磁帶 | ||
| 6271 | LTO Ultrium 200GB Data Cartridge | |
| 網卡 | ||
| 1979 |
00G2380 03N6070 03N6525 52P8642 80P6445 |
10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1983 |
00G2380 03N6070 52P8643 80P6450 |
IBM 2-Port 10 100 1000 Base-TX Ethernet PCI-X Adapter |
| 1954 |
00N5444 03N5446 |
4-Port 10 100 1000 BaseT Ethernet PCI-X Adapter |
| 5722 |
576A 03H4588 10N8263 10N9776 10N9777 12R6249 12R9315 80P6634 80P7053 |
10 Gb Ethernet-LR PCI-X 2.0 DDR Adapter |
| 5721 |
573A 03N4590 05N6768 10N8264 10N9774 10N9775 11P3847 12R9314 15R75836 74Y2621 80P6636 80P7055 |
10 Gb Ethernet-SR PCI-X 2.0 DDR Adapter |
| 1981 |
03N6970 05N6768 11P3847 12R9314 15R7536 52P8614 80P6452 |
10 Gigabit Ethernet -SR PCI-X Adapter |
| 1982 |
03N6972 12R6249 12R9315 52P8615 80P6453 |
IBM 10 Gigabit Ethernet-LR PCI-X Adapter |
| 1984 |
03N6974 05H6768 11P3847 12R9314 15R7536 52P8644 80P6451 |
IBM 2-Port Gigabit Ethernet-SX PCI-X Adapter |
| 1978 |
03N6981 03N6982 05N6768 11P3847 12R9314 15R7536 52P8641 83P6444 |
IBM Gigabit Ethernet-SX PCI-X Adapter |
| 光纖卡 | ||
| 1905 |
03N5005 03N5010 46K6838 |
4 Gb Single-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1910 |
03N5020 03N5025 05N6768 11P3847 12R9314 |
4 Gb Dual-Port Fibre Channel PCI-X 2.0 DDR Adapter |
| 1977 |
03N6439 03N7067 05N6768 10N8623 11P3847 12R9314 15R7536 52P8633 80P6101 80P6455 |
2 Gigabit Fibre Channel PCI-X Adapter |
| 1986 |
26K6490 30R5209 32R1926 49Y4236 52P8480 80P4092 |
1 Gigabit iSCSI TOE PCI-X on Copper Media Adapter |
| 1987 |
30R5509 52P8456 80P4094 |
1 Gigabit iSCSI TOE PCI-X on Optical Media Adapter |
| RAID卡 | ||
| 1907 |
39J1309 39J3540 39J4604 39J5653 39J5654 |
Dual Channel SCSI RAID Enablement Daughter Card, Cache battery pack 42R5070. |
| 1913 |
571B 39J2418 39J5026 42R4857 |
PCI-X DDR Dual Channel Ultra320 SCSI RAID Adapter, Cache battery pack 39J5555.
Note: The 1913 adapter is not supported by i5 |
| 1975 |
39J5107 52P8630 80P6515 |
PCI-X Dual Channel Ultra320 SCSI RAID Adapter |
| SCSI卡 | ||
| 1912 |
39J2421 39J4998 42R4862 42R4362 52P8558 |
PCI-X DDR Dual Channel Ultra320 LVD SCSI Adapter |
| 1974 |
52P8632 80P6513 |
PCI-X Dual Channel Ultra320 SCSI Adapter |
| 顯卡 | ||
| 2842 |
00P2939 00P4474 00P4476 09P3425 09P6543 09P6547 10N9107 10N9108 80P7124 80P7125 |
POWER GXT4500P Graphics Accelerator |
| 2843 |
00P4471 00P4473 09P3391 09P6536 09P6540 09P6595 10N9105 80P7117 80P7118 |
POWER GXT6500P Graphics Accelerator |
| 2849 |
00P5756 00P5758 03N5853 09P5758 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 1980 |
03N5853 03N5855 52P8645 80P6408 80P6411 |
POWER GXT135P Graphics Accelerator with Digital Support |
| 適配卡 | ||
| 6312 |
00P3119 10N7380 87H3588 |
Quad Digital Trunk Telephony PCI Adapter |
| 1809 |
03N6028 03N6662 39J5538 42R5841 |
GX Dual-port 4x HCA |
| 2947 |
07L8796 53G0638 84H3413 87H3311 87H3410 87H3413 87H3420 87H3427 87H3439 87H3440 87H3442 87H3450 87H3500 87H3565 87H3566 87H3567 87H3568 87H3613 87H3615 87H3616 87H3620 87H3617 87H3621 87H3622 87H3625 87H3626 87H3627 87H3630 87H3631 87H3632 87H3663 87H3715 87H3772 |
IBM ARTIC960Hx 4-Port Multiprotocol PCI Adapter |
| 4764 |
12R6540 12R6714 41U0441 41U0442 41V0161 |
PCI-X Cryptographic Coprocessor (FIPS 4) |
| 1820 |
26K7434 26K7452 |
PCI-X Dual-port 4x IB HCA |
| 2738 |
28EF 52P8639 80P2994 80P6227 |
2-Port USB PCI Adapter |
| 2943 |
07L9001 07L9822 11H5967 11H5968 11H5969 11H6011 42R4761 6298964 93H6540 93H6541 94H6541 |
8-Port Asynchronous Adapter EIA-232 RS-422, PCI bus |
| 5723 |
64P1243 80P4353 |
2-Port Asynchronous EIA-232 PCI Adapter |
| 80P3259 | VPD card. | |
| 穩壓模塊 | ||
| 7876 | 44P3193 | 1.2V Processor Power Regulator |
| 硬盤背板 | ||
|
6592 292C |
03N5876 03N5997 03N5998 32N1200 32N1201 64P1269 80P4611 80P4770 80P5002 80P5393 80P6430 |
Ultra320 SCSI disk drive 4-pack backplane for external SCSI port. (This feature enables external SCSI devices to connect to internal SCSI controller channels.) |
|
6593 292E |
03N5877 03N5880 64P1270 80P5003 80P5105 |
Ultra320 SCSI 4-Pack for Disk Mirroring |
| 光驅 | ||
| 1994 |
03N4712 52P8635 80P6300 |
IDE Slimline DVD-ROM Drive |
| 1993 |
03N4713 18P8166 39J3532 42R7967 42R7968 52P8450 52P8636 80P6340 80P6341 |
IBM 4.7 GB IDE Slimline DVD-RAM Drive |
| 線纜 | ||
| 6001 |
00G1277 42F6839 |
Power Control Cable (SPCN-2 meter) |
| 3925 |
00P2165 23R4632 40H6328 40H6329 |
Serial Port Converter Cable 9-Pin to 25-Pin |
| 3926 | 00P2166 |
Asynch Printer Terminal Cable 9-pin to 25-pin 4M |
| 4256 |
00P2969 10N7374 32N1311 44P1375 |
Extender Cable - USB Keyboards 2M |
| 3146 |
00P3237 09P2631 21P5454 39J2562 44V5140 |
RIO-2(Remote I O-2Cbl 1.2M |
| 3147 |
00P3238 09P2632 31P6131 39J2554 43L8981 53P2676 |
RIO-2(Remote I O-2Cbl 3.5M |
| 3148 |
00P3239 09P2633 21P5456 39J2561 43L8982 |
RIO-2 (Remote I O-2) Cable, 10M |
| 2459 |
00P4023 11P1374 12R9322 |
LC-SC 62.5 Micron Fiber Converter Cable |
| 3156 |
00P5238 03N5867 |
RIO-2 (Remote I O-2 Cable 1.75M) |
| 3168 |
00P5239 03N5866 |
RIO-2 (Remote I O-2 Cbl 2.5M |
| 4263 |
00P6267 39J2634 39J4140 42R4119 53P4486 97P2548 97P5103 97O5354 |
SCSI Cables (Power and Logic) PCI Riser to SCSI LVD Media Device; Mounting Tray |
| 2118 |
01K6497 07L9628 76H0518 |
Converter Cable VHDCI to P Mini-68 pin to 68 pin 0.3M |
| 4353 | 03N3493 | H-100 Bus 8-position Cable |
| 2874 | 05F2045 | IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 7.5M Extension Cable |
| 7802 |
05N5292 41V0143 52P7525 |
Ethernet Cable 15M Hardware Management Console to System Unit |
| 2861 |
07L8817 87H3404 87H3405 87H3406 87H3439 87H3568 |
ARTIC960Hx 4-Port EIA-232 Cable |
| 4242 |
07L9633 08L0491 42R4755 |
6 Foot Extender Cable for Displays (15 pin D-shell to 15 pin D-shell |
| 2877 |
08L1215 42R4756 |
IBM ARTIC960RxD Quad DTA, H.100, 4-Drop Cable |
| 6006 |
09P1251 22R5239 93H8045 |
Power Control Cable (SPCN-3 meter) |
| 2456 |
09P3044 11P1352 11P1373 12R9321 |
LC-SC 50 Micron Fiber Converter Cable |
| 2934 |
10N6535 12H1204 40H0744 40H2206 |
Asynchronous Terminal Printer Cable EIA-232 |
| 3124 |
10N7158 88G4771 88G4853 |
Serial to Serial Port Cable for Drawer Drawer |
| 3125 |
10N7159 88G4772 88G4854 |
Serial to Serial Port Cable for Rack Rack |
| 3927 | 10N7712 | Serial Port Null Modem Cable 9-pin to 9-pin 3.7M |
| 3928 | 10N7713 | Serial Port Null Modem Cable 9-pin to 9-pin 10M |
| 7801 |
16R0449 41V0479 52P7524 |
Ethernet Cable 6M Hardware Management Console to System Unit |
| 6007 |
21F9358 22R5221 55F4533 a> |
Power Control Cable (SPCN 15 meter) |
| 6029 |
21F9359 22R5222 |
Power Control Cable (SPCN 30 meter) |
| 6008 |
21F9469 22R5219 55F4532 74F0188 |
Power Control Cable (SPCN 6 meter) |
| 1836 |
21P8318 26R0847 26R0848 42R6245 44V5083 |
8 meter 4x Cable |
| 1835 |
26R0813 42R6244 44V5082 97P6113 |
3 meter 4x Cable |
| 2936 |
30F9453 42R5206 53F3205 53F3662 6223741 6323741 |
Asynchronous Cable EIA-232 V.24 |
| 2951 |
33F8985 93H2899 93H5263 |
Cable V.24 EIA-232 |
| 2873 |
34f0875 34f0876 87h3773 87H3790 87H3791 |
IBM ARTIC960RxD Quad DTA, E1, 120 Ohm Balanced, 3M 4-Drop Cable |
| 2871 |
34f0875 34f0876 87h3776 87H3793 87H3795 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 3M 4-Port Cable |
| 1839 |
39J4319 42R6243 44V5081 |
1.5 meter 4x Cable |
| 4274 |
39J5847 97P4962 |
SCSI Cable PCI Adapter to Hot-Swap Disks |
| 2954 |
40F9904 93H2902 93H5267 |
Cable X.21 |
| 2425 |
40H2172 52G4233 |
2.5M 16-bit SCSI-2 System-to-System Cable |
| 2114 |
40H6603 52G0173 |
PCI SCSI Adapter 16-Bit Differential External Y Cable |
| 3653 |
42R6727 44V4148 |
SAS Cable (EE) Drawer to Drawer 3M |
| 3654 |
42R6728 44V4149 |
SAS Cable (EE) Drawer to Drawer 6M |
| 3661 |
42R6742 44V4154 |
SAS Cable (X Adapter to SAS Enclosure Dual Controller Dual Path 3M |
| 3662 |
42R6743 44V4155 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 6M |
| 3663 |
42R6744 44V4156 |
SAS Cable (X) Adapter to SAS Enclosure, Dual Controller Dual Path 15M |
| 3652 |
42R6762 44V4147 |
SAS Cable (EE Drawer to Drawer 1M |
| 3691 |
42R6788 44V4157 |
SAS Cable (YO Adapter to SAS Enclosure Single Controller Dual Path 1.5 M |
| 3692 |
42R6789 44V4158 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 3 M |
| 3693 |
42R6790 44V4159 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 6 M |
| 3694 |
42R6791 44V4160 |
SAS Cable (YO) Adapter to SAS Enclosure, Single Controller Dual Path 15 M |
| 3684 |
42R8118 44V4163 |
SAS Cable (AE Adapter to Enclosure single controller single path 3M |
| 3685 |
42R8120 44V4164 |
SAS Cable (AE) Adapter to Enclosure, single controller single path 6M |
| 8132 |
43F0936 43F0937 43G0936 |
128-Port Asynchronous Controller Cable 23cm (9-Inch |
| 8133 |
43G0935 51G8610 |
RJ-45 to DB-25 Converter Cable |
| 8131 |
43G0937 51G8608 |
128-Port Asynchronous Controller Cable 4.5 Meter |
| 2424 | 52G4291 | 0.6M 16-bit SCSI-2 System to System Cable |
| 2863 |
53G0638 87H3407 87H3408 87H3409 87H3566 |
ARTIC960Hx 4-Port X.21 Cable |
| 4693 | 53P2231 | Rack Beacon Junct Box Cable |
| 4691 | 53P2237 | Rack Status Beacon Cable Junction Box To Drawer Or Status Beacon |
| 4692 | 53P2854 | Rack Status Beacon Cable Junction Box Daisy Chain |
| 2872 |
54F0740 87H3791 |
ARTIC960RxD Quad DTA, T1, 100 Ohm, 15M Extension Cable |
| 2952 |
71F0163 93H2900 93H5264 |
Cable V.35 |
| 2953 |
73H2508 93H2901 93H5265 |
Cable V.36 EIA-499 |
| 2864 |
87H3398 87H3399 87H3400 87H3442 87H3565 |
ARTIC960Hx 4-Port V.35 (DTE Cable |
| 2710 |
87H3514 87H3515 87H3586 |
ARTIC960Hx RxD 4-Port E1 RJ-45 Cable |
| 2709 |
87H3517 87H3518 87H3587 |
ARTIC960Hx RxD 4-Port T1 RJ-45 Cable |
| 6458 |
Power Cable- Drawer to IBM PDU 14-foot 250V 10A |
|
| 6460 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #4 | |
| 6469 | Power Cord (14-foot Drawer to OEM PDU (250V 15A United States Plug Type #5 | |
| 6470 | Power Cord (6-foot To Wall (125V 15A Plug Type #4 | |
| 6471 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #70 |
|
| 6472 |
Power Cord (9-foot To Wall OEM PDU (250V 16A Plug Type #18 |
|
| 6473 |
Power Cord (9-foot To Wall OEM PDU (250V 10A Plug Type 19 |
|
| 6474 |
Power Cord (9-foot) To Wall OEM PDU (250V 13A) Plug Type #23 |
|
| 6475 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #32 |
|
| 6476 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #24 |
|
| 6477 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #22 |
|
| 6478 |
Power Cord (9-foot) To Wall OEM PDU (250V 16A) Plug Type #25 |
|
| 6479 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 |
|
| 6487 | Power Cord (6-foot To Wall (250V 15A United States Plug Type #5 | |
| 6488 |
Power Cord (9-foot To Wall OEM PDU (125V 15A or 250V 10A Plug Type #2 |
|
| 6493 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #62 |
|
| 6494 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #69 |
|
| 6495 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #73 |
|
| 6496 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #66 |
|
| 6497 |
Power Cord (6-foot) To Wall OEM PDU (250V 10A) Plug Type #10 |
|
| 6498 |
Power Cord (6-foot) To Wall OEM PDU (250V 15A) Plug Type #34 |
|
| 6651 |
Power Cord (9-foot To Wall OEM PDU (125V 15A Plug Type #75 |
|
| 6659 |
Power Cord (9-foot To Wall OEM PDU (250V 15A Plug Type #76 |
|
| 6660 | Power Cord (14-foot Drawer To OEM PDU (125V 15A Plug Type #59 (DENAN marking | |
| 6665 |
Power Cord 3 M (10 ft Drawer to IBM PDU 250V 10A |
|
| 6669 | Power Cord (14-foot Drawer to OEM PDU (250V 15A Plug Type #57 (DENAN marking | |
| 6670 | Power Cord (6-foot To Wall (125V 15A Plug Type #59 (DENAN marking | |
| 6671 |
Power Cord (9-foot) Drawer to IBM PDU 250V 10A |
|
| 6672 |
Power Cord (5-foot) Drawer to IBM PDU 250V 10A |
|
| 6680 |
Power Cord (9-foot) To Wall OEM PDU (250V 10A) Plug Type #6 Insulated |
|
| 6687 | Power Cord (6-foot) To Wall (250V 15A) Plug Type #57 (DENAN marking) | |
| 導軌 | ||
| 7163 |
42R3866 52P8414 |
OEM Rack-mount Drawer Rail Kit |
| 7162 |
42R3866 52P8414 97P5271 |
IBM OEM Rack-mount Drawer Rail Kit |
| 7192 | IBM Rack-mount Drawer Bezel and Hardware | |
| 7874 | OEM Rack-mount Drawer Bezel and Hardware | |
| 風扇 | ||
| 97P6567 | PCI fan | |
| 97P6568 | CPU fan. | |
| 電池 | ||
|
04N2496 22R2717 42R5070 44L0313 |
Battery for raid card. | |
| 其他 | ||
| 1806 |
03N6658 39J2571 64P1205 80P3600 80P5478 |
HSL-2 RIO-G Ports - 2 Copper |
| 3628 |
04N7160 04N7168 04N7170 04N7172 04N7177 04N7529 04N7532 04N7589 61H0226 |
IBM P260 P275 Color Monitor, Business Black, and Cable |
| 3637 |
04N7526 04N7527 04N7532 13F9959 31P7507 31P7509 31P7511 31P7513 31P7515 |
IBM T541H L150p 15" TFT Color Monitor |
| 3752 | 09P3035 | Service Package |
| 8136 |
09P4095 09P4096 40H2588 40H2589 |
Rack Mountable Remote Asynchronous Node 16-Port EIA-232 |
| 6598 |
12R7457 64P1426 |
Disk Slot Fillers (Quantity 4) |
| 3639 |
13F9959 31P9575 31P9577 31P9584 31P9587 31P9590 73P0261 |
L180P TFT 17" Color Display |
| 3638 |
22P4543 73P2310 73P2311 73P2313 73P2316 |
C220P 21" Color Monitor |
| 3636 |
31P9263 31P9264 31P9265 31P9266 |
L200P Flat Panel Monitor |
| 3645 |
39Y9919 40k5342 |
IBM T117 Flat Panel Monitor |
| 3641 |
40K7317 40K5341 73P4360 |
T115 TFT 15" Color Display |
| 265 | AIX Partition Specify | |
| 3640 | L171P TFT 17" Black Display | |
| 3642 | ThinkVision L191p Flat Panel Monitor | |
| 3644 | IBM T119 Flat Panel Monitor | |
| 4650 | Rack Indicator-Not Factory Integrated | |
| 4651 | Rack Indicator, Rack #1 | |
| 4660 | Rack Indicator, Rack #10 | |
| 4661 | Rack Indicator, Rack #11 | |
| 4662 | Rack Indicator, Rack #12 | |
| 4663 | Rack Indicator, Rack #13 | |
| 4664 | Rack Indicator, Rack #14 | |
| 4665 | Rack Indicator, Rack #15 | |
| 4666 | Rack Indicator, Rack #16 | |
| 5001 | Customer Solution Center | |
| 5983 | USB Keybd-US English Euro | |
| 2591 |
03N4962 33P3339 52P8634 |
Ext 1.44GB Diskette Drive |
| 7191 | IBM Deskside Cover Set | |
| 7305 | SDI Software Pre-Install Indicator | |
| 7917 | OEM Deskside Cover Set | |
| 7941 | Advanced POWER Virtualization | |
| 8422 | SpaceBall 3D Input Device | |
| 8423 | Magellan XT 3D Input Device | |
| 8424 | SpaceBall 3D Input Device (USB) | |
| 8425 | SpaceMouse Plus 3D Input Device (USB) | |
| 9004 | Southern Hemisphere Designator for Monitors | |
| 9300 | Language Group Specify - US English | |
| 9461 | Month Indicator | |
| 9462 | Day Indicator | |
| 9463 | Hour Indicator | |
| 9464 | Minute Indicator | |
| 9465 | Qty Indicator | |
| 9466 | Countable Member Indicator | |
| 9589 | Express Product Offering 91331E1 | |
| 9590 | Express Product Offering 91331E2 | |
| 9591 | Express Product Offering 91331E3 | |
| 9592 | Express Product Offering 91331E4 | |
| 9593 | Express Product Offering 91331E5 | |
| 9594 | Express Product Offering 91331E6 | |
| 9595 | Express Product Offering 91331E7 | |
| 9596 | Express Product Offering 91331E8 | |
| 9597 | Express Product Offering 91331E9 | |
| 9598 | Express Product Offering 91331E0 | |
| 9599 | Express Product Offering 91331EA | |
| 9600 | Express Product Offering 91331EB | |
| 5005 | software preinstall | |
| 5959 | Full Width Quiet Touch Keyboard -- USB, Hungarian, #208 | |
| 5886 | EXP 12S Expansion Drawer | |
| 4273 | 64P1271 | External SCSI Media Attach |
|
7877 28D1 |
03N5895 03N5897 03N6004 03N6005 39J2521 39J2523 80P3510 80P4013 80P4137 80P4138 80P4179 97P3815 |
Media Backplane |
| 97P2642 | 2.5V Processor Power Regulator | |
| 24P6892 | 1.8V Processor Power Regulator | |
| 28E5 |
39J3273 97P4935 |
LCD display. |
