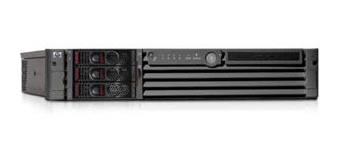

HP RX2660
| 整機信息 | |
| 機架類型 | 機架式 |
| 機架空間 | 2U |
| CPU信息 |
雙核1.66GHz，英特爾安騰 9140M，18M，667MHz 雙核1.42GHz，英特爾安騰 9120N， 12M，553MHz 單核1.6GHz，英特爾安騰 9110N， 12M，553MHz |
| CPU類型 | 英特爾 安騰 |
| CPU插槽數 | 2 |
| 硬盤信息 | 硬盤容量可選擇 36GB、73GB和 146GB SCSI (SAS)硬盤；內置硬盤托架 8 個熱插拔SCSI (SAS)；最大內部存儲容量 1.2TB。 |
| 最大硬盤數量 | 8 |
| 內存提示 | RAM類型 DDR2 SDRAM |
| 支持內存容量范圍 | 1GB到 32GB |
| 內存插槽數量 | 8 |
| 電源描述 | 最大配置：798W ；最大配置(閑置時)：567W；最大輸出功率：交流輸入電壓為 90V到 132V時，800W/交流輸入電壓為 180V到 264V時，1000W。 |
| 單機電源數量 | 2 |
| 介質托架 | 1 個用于DVD-ROM或DVD+RW驅動器的空閑托架。 |
| 適配器插槽 | 二者選一：全部為PCI-X的卡盒(Card Cage)：3個全長PCI-X插槽(2個為266 MHz/64位，1個為133 MHz/64位), 5.3 GB/s的I/O帶寬(包括核心I/O在內的總帶寬為7.0 GB/s)；組合卡盒(Card Cage)：3個全長插槽(2個為PCI Express插槽，各2.6 GB/s帶寬，1個為PCI-X插槽，133 MHz/64位), I/O總帶寬為6.3 GB/s (包括核心I/O在內的總帶寬為8.0 GB/s)。 |
| 端口 | 雙端口 10/100/1000Base-T以太網；8 端口串行SCSI (SAS)控制器僅支持內置設備；用于本地人機界面的VGA和3個USB端口；1個通用的RS-232串行端口；用于Integrated Lights Out (iLO 2)管理的1個RS-232串行端口和10/100Base-T局域網 |
| 操作系統 | HP-UX 11i v3和HP-UX 11i v2 (有關鍵任務、企業或基礎操作環境可供選擇)；Microsoft Windows Server 2003, 企業和數據中心版；Red Hat Enterprise Linux AS/ES 4 和 5 和Novell SUSE Linux Enterprise Server 10；OpenVMS v8.3; v8.31（2008年上半年）(有關鍵任務、企業或基礎操作環境可供選擇)。 |
| 產品尺寸 | 機架外形 高度：3.4英寸(86毫米) 2U EIA；寬度：19.0英寸(482毫米)；深度：26.5英寸(672毫米)。立式外形 高度：20.2英寸(512毫米)；寬度：10.8英寸(275毫米)；深度：27.1英寸(688毫米)。 |
| 產品重量 | 機架外形最大配置：62磅(28千克)；立式外形最大配置：87磅(40千克)。 |
| 配件信息 | |
| PN號 | 描述 |
| CPU | |
|
AB577-69018 AB577-2100B |
CPU module - 1.6GHz, 18MB Level-3 cache, dual-core |
|
AB577A AB577AX |
HP RX3600 1.6GHz 18MB Dual Core Processor |
| AD249A | HP Integrity rx2660 1.6G 6MB Single Core Central Processing Unit (CPU) |
| AD252A | HP Integrity rx2660 1.4G 12MB Dual Core Central Processing Unit (CPU) |
|
AH236-6900A AH236-2100A |
CPU module - 1.6GHz, 6MB Level-3 cache, single-core |
| AH236A | HP Integrity rx2660 1.6GHz 6MB Single Core Processor |
| AH237-2100A | CPU module - 1.4GHz, 12MB Level-3 cache, dual-core |
| AH237-6900A | CPU module - 1.4GHz, 12MB Level-3 cache, dual-core |
| AH238-2100A | CPU module - 1.6GHz, 18MB Level-3 cache, dual-core |
| AH238-6900A | CPU module - 1.6GHz, 18MB Level-3 cache, dual-core |
| AH238A | HP Integrity rx2660 1.6GHz 18MB Dual Core Processor |
| 系統板 | |
| 452372-001 | PCIe, dual-port, DDR, 4X board |
| AB419-67002 | PCI-X I/O backplane assembly |
| AB419-67003 | PCI-e and PCI-X I/O backplane assembly |
| AB419-67026 | System board |
| AB419-69005 | System board- MVX |
| 內存 | |
| AB564-69001 | 1GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module |
| AB564-69002 | 1GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module |
|
AB565-69001 AB565-69002 |
2GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module |
| AB566-69001 | 4GB, PC2-4200 DDR2 memory modules (2 DIMMs) |
| AB566-69002 | 4GB, PC2-4200 DDR2 memory modules (2 DIMMs) |
| AB567-69001 | 8GB DDR2 DIMM memory module |
| AD273A | HP Integrity rx2660 1GB (2x512MB) DDR2 Memory |
| AD274A | HP rx2660 2GB (2x1GB) Single Rank PC2-4200 MB/s (DDR2-533) Registered Memory |
| AD275A | HP 4GB (2x2GB) DDR2 memory module |
| AD276A | HP 8GB (2x4GB) DDR2 memory module |
|
AD326A AB563-69001 |
512MB DIMM memory module512MB DIMM memory module |
| AD327A | 1GB DDR2 DIMM memory module - For rx3600 and rx6600 |
| AD327B | 1GB DDR2 DIMM memory module - For rx3600 and rx6600 |
|
AD328A1 AB565-6900 |
2GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module2GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module |
| AD328B | 2GB, 533Mhz, 240pin, registered ECC DDR2 SDRAM DIMM memory module |
| AD329B | 4GB PC2-4200 DDR2 memory module (2GBx2 DIMMs) |
| AH409A | 8.0GB DDR2 DIMM memory module |
| 硬盤 | |
| 376596-001 | 36.0GB hot-plug Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch small form factor (SFF) |
| 376597-001 | 72.0GB hot-plug Serial Attached SCSI (SAS) hard drive - 10,000 RPM, single-port, 2.5-inch small form factor (SFF) |
| 389346-001 | 72.0GB hot-pluggable dual-port SAS hard drive - 10,000 RPM, 2.5-inch small form factor (SFF) |
| 418399-001 | 146.0GB hot-swap dual-port Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch Small Form Factor (Option 418367-B21) |
|
432320-001 431954-003 |
146GB hot-plug Serial Attached SCSI (SAS) hard disk drive - 10,000 RPM, 2.5-inch form factor |
| 507283-001 | 146GB hot-swap dual-port Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch Small Form Factor (SFF), 6Gb/sec transfer rate |
| AD140A | HP Integrity 36GB 10,000 RPM Serial Attached SCSI (SAS) drive |
| AD141A | HP Integrity 73GB 10,000 RPM Serial Attached SCSI (SAS) drive |
| AD333A | HP 146.0GB hot-swap Serial Attached SCSI (SAS) hard drive - 10,000 RPM, 2.5-inch form factor |
| 網卡 | |
| AD339-67001 | PCIe 4-port 1000Base-T adapter board |
| AD339A | HP PCIe 4-port 1000Base-T Gigabit Adapter |
| AD386A | HP PCIe 10 Gigabit Ethernet Adapter |
| 適配卡 | |
| AB620-60503 | Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot - For HP-UX operating system |
| AH304A | HP Fabric Clustering System PCIe 2-port 4X DDR Fast InfiniBand (IB) fabric Host Channel Adapter (HCA) |
| 光纖卡 | |
| A9784-69003 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| A9784A | 1000Base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors |
| A9784AX | 2GB dual-channel PCI-X Fiber Channel (FC) 1000Base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
| AD221A | HP PCIe single port, 4GB, Fiber Channel (FC), and single port 1000Base-T adapter board |
| AD386-69001 | PCIE Smart 10GBE SR Fiber adapter board |
| AD393A | HP PCIe dual-port, 4GB, Fiber Channel (FC), and dual-port 1000Base-X adapter |
| 電源 | |
|
380622-001 403781-001 |
Hot-plug power supply - 100 to 240Vrms nominal input voltage, 800 to 1000W maximum rated output wattage |
| AB419-67023 | Bulk power supply - For use with the rx2660 CRU |
| 電池 | |
|
319603-001 153099-001 |
Real-time clock (RTC) battery (CR2032) - 3.0V lithium disc cell, 220mAh, 20mm diameter, 3.2mm height |
| 398648-001 | 4.8V, 500mAh, Ni-MH battery - For use with 512MB battery backed write cache (BBWC) module |
| 光驅 | |
| 397928-001 | IDE slimline DVD-ROM optical drive (Black) - 8X DVD-ROM read, 24X CD-ROM read |
| AD142-2100B | HP server S5 DW224EV DVD-ROM drive |
| AD142A | HP Integrity DVD-ROM drive |
| AD143-2100A | Server optical drive (Black) - DVD+R/RW, slimline form factor, 8X speed, S5, carbonite |
| AD143A | HP Integrity DVD-RW Drive |
| 風扇 | |
| 407747-001 | Fan - Hot-plug fan assembly, 60mm x 38mm |
| AB419-67021 | Fan assembly - Office friendly |
| 線纜 | |
| 409124-001 | Battery cable assembly - 28AWG, 16-pin - 29.2cm (11.5in) long |
| AB419-67012 | Cable kit - Includes fan/display signal cable, diag panel to display/fan board signal cable, I/O fan board to display/fan board signal cable, DVD signal cable, SAS power cable, display/fan board to system board power cable, and CPU power cable |
| AB419-67013 | Serial Attached SCSI (SAS) cable |
| 機殼 | |
| AB419-67014 | Front bezel |
| AB419-67015 | Top cover |
| AB419-67022 | Top cover - Office friendly |
| 其它 | |
| 405831-001 | Serial Attached SCSI (SAS) Smart Array P400 controller - Has vertical connectors on the back-side of the board for use with the rx2660 server |
| 405836-001 | 256MB battery backed write cache (BBWC) memory board - 40-bit, DDR - For Smart Array P400 controller |
| 406059-001 | Trusted Platform Module (TPM) security module |
| 407750-001 | Backplane board for power supply |
| AB419-67004 | Display/fan board |
| AB419-67005 | System Insight Display |
| AB419-67008 | PCI expansion board |
| AB419-67009 | I/O fan board |
| AB419-67010 | Serial Attached SCSI (SAS) backplane board |
| AB419-67016 | CPU baffle (airflow guide) |
| AB419-67019 | Display/fan board - Office friendly |
| AB419-67020 | I/O fan board - Office friendly |
| AB419-69002 | I/O PCI-X backplane assembly board |
| AB419-69003 | I/O PCIE/PCI-X backplane assembly board |
| AD221-67001 | PCIe single-port, 4GB, Fiber Channel (FC), and single port 1000Base-T adapter board |
| AD222-67001 | PCIe dual-port, 4GB, Fiber Channel (FC), and dual port 1000Base-T adapter board |
| AD222A | HP PCIe dual port, 4GB, Fiber Channel (FC), and dual port 1000Base-T adapter board |
| AD246A | HP Integrity rx2660 2 PCI-X 266 1 PCI-X 133 I/O Backplane |
| AD247A | HP Integrity rx2660 2 PCIe 1 PCI-X 266 I/O Backplane |
| AD393-67001 | PCIe double-port, 4GB, Fiber Channel (FC), and double-port 1000SX adapter board |
