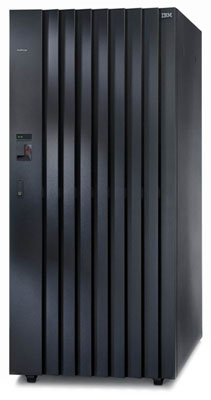

IBM DS8300 (2107-932)
| 整機信息 | |
| 名稱 | IBM System Storage DS8300 |
| 型號 | 2107-932 |
| 機架空間 | |
| 控制器信息 | dual 4-way |
| 整機控制器緩存 | 32GB(可擴至256GB) |
| 控制器是否有電池 | 是 |
| 接口 | 4端口4GBps或2GBps光纖通道/FICON,2端口ESCON |
| 硬盤插槽數量 | 16 |
| 支持的硬盤 | 最大物理存儲容量：115 TB；73 GB（15000rpm），146 GB(10000rpm),300 GB(10000rpm)。 |
| 支持Raid類型 | RAID 級別：5,10 |
| 發布日期 | |
| 下架日期 | |
| 存儲分區 | |
| 可用性 | 容災，雙冗余和熱插拔RAIC控制器卡，電池備份設備，光纖通道交換機控制器，電源，無間斷硬件和軟件代碼加載更新，多路徑設備驅動器 |
| SAN支持 | 直接、FC-AL、交換結構。 |
| 其他特性 | |
| 產品尺寸 | 長度 1183mm；寬度 1694mm；高度 1930mm。 |
| 產品重量 | 1307千克 (2880磅). |
| 管理軟件 | |
| 存儲擴展柜 | 2107-92E |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| 緩存 | ||
| 4112 | 32GB Processor Memory(Withdrawn) | |
| 4113 | 64GB Processor Memory | |
| 4114 | 128GB Processor Memory | |
| 4115 | 256GB Processor Memory | |
| 硬盤 | ||
| 2016 | 73GB 15K Drive Set (Withdrawn) | |
| 2017 | 73GB 15K CoD Drive Set (Withdrawn) | |
| 2116 | 146GB 10K Drive Set (Withdrawn) | |
| 2117 | 146GB 10K CoD Drive Set (Withdrawn) | |
| 2216 | 146GB 15K FC Drive Set (Withdrawn) | |
| 2217 | 146GB 15K FC CoD Drive Set (Withdrawn) | |
| 2316 | 300GB 10K Drive Set (Withdrawn) | |
| 2317 | 300GB 10K CoD Drive Set (Withdrawn) | |
| 2416 | 300GB 15K FC Drive Set | |
| 2417 | 300GB 15K FC CoD Drive Set | |
| 2516 | 500GB 7.2K Drive Set (Withdrawn) | |
| 2517 | 500GB 7.2K CoD Drive Set (Withdrawn) | |
| 2616 | 450GB 15K FC Drive Set | |
| 2617 | 450GB 15K FC CoD Drive Set | |
| 2816 | 1TB 7.2K SATA Drive Set (Withdrawn) | |
| 2817 | 1TB 7.2K SATA CoD Drive Set (Withdrawn) | |
| 適配卡 | ||
| 3111 |
22R1720 22R4912 22R6207 |
2Gb SW FCP/FICON Adapter (Withdrawn) |
| 3113 | 23R0185 | 4Gb SW FCP/FICON Adapter |
| 3211 | 2Gb LW FCP/FICON Adapter (Withdrawn) | |
| 3213 | 4Gb LW FCP/FICON Adapter | |
| 3215 | 4Gb 10km LW FCP/FICON Adapter | |
| 3311 | ESCON Adapter (Withdrawn) | |
| 電源 | ||
| 9090 | AC Voltage: 200V-240V | |
| 9091 | AC Voltage: 380V-480V | |
| 許可協議 | ||
| 2244-OEL | Operating Environment License(required) | |
| 2244-PAV | Parallel Access Volumes | |
| 2244-PTC | Point in Time Copy | |
| 2244-RMC | Remote Mirror and Copy | |
| 2244-RMZ | Remote Mirror for z/OS | |
| 線纜 | ||
| 1410 | 50um Fibre Cable (LC) | |
| 1411 | 50um Fibre Cable (LC/SC) | |
| 1412 | 50um Fibre Cable (Jumper) | |
| 1420 | 9um Fibre Cable (LC) | |
| 1421 | 9um Fibre Cable (LC/SC) | |
| 1422 | 9um Fibre Cable (Jumper) | |
| 1430 | ESCON Cable (MT-RJ) (Withdrawn) | |
| 1431 | ESCON Cable (MT-RJ/DUP) (Withdrawn) | |
| 1432 | ESCON Cable (Jumper) (Withdrawn) | |
| 1440 | ESCON PL Cable (MT-RJ) (Withdrawn) | |
| 1441 | ESCON PL Cable (MT-RJ/DUP) (Withdrawn) | |
| 其它 | ||
| 21 | Joint Engineering Manufacturing Test (JEMT) Indicator | |
| 100 | English Translation Materials/UNIX Host Attachment/Eligible for EU Shipment | |
| 200 | Shipping Weight Reduction | |
| 902 | Standby CoD Indicator 2 | |
| 903 | Standby CoD Indicator 3 | |
| 904 | Standby CoD Indicator 4 | |
| 930 | IBM/Openwave Alliance/ Global mirror indicator | |
| 931 | IBM System i Indicator | |
| 932 | IBM System p Indicator | |
| 933 | IBM System x Indicator | |
| 934 | IBM System z Indicator | |
| 950 | Global Mirror Indicator | |
| 1000 | Remote Power Control | |
| 1055 | Extended PLD | |
| 1090 | Line Cord(US/LA/AP/Canada) | |
| 1092 | Line Cord(Japan/US/Canada) | |
| 1093 | Line Cord(US Chicago)(Withdrawn) | |
| 1100 | Internal Management Console(Withdrawn) | |
| 1110 | External Management Console(Withdrawn) | |
| 1701 | Release 4 Bundle Family(Withdrawn) | |
| 1801 | Replication Manager Ethernet Adapter Pair | |
| 1906 | Earthquake kit(Withdrawn) | |
| 9100 | MC Keyboard for Internal Console-US English(Withdrawn) | |
| 9101 | MC Keyboard for Interal Console-Japanese(Withdrawn)/modem | |
| 9110 | MC Keyboard for External Console-US English(Withdrawn) | |
| 9111 | MC Keyboard for External Console-Japanese(Withdrawn) |
