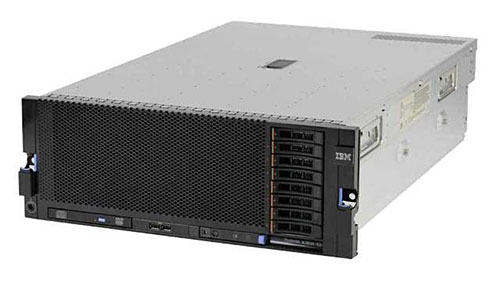

IBM X3850X5 (7143)
| 整機信息 | |
| 名稱 | IBM System x3850/3950 X5 |
| 型號 | 7143 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | 英特爾至強，高達 2.4GHz(十核)/1066MHz 內存訪問 |
| CPU類型 | 英特爾至強 |
| CPU插槽數 | 4 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 4U |
| 硬盤信息 | 每機箱 4.8TB(支持 8 個 73.4GB、146.8GB、300GB、500GB 和 600GB SAS 硬盤驅動器，8 個 160GB 和 500GB SATA 硬盤驅動器，或 16 個 50GB 和 200GB 固態驅動器) |
| 最大硬盤數量 | 8個2.5寸熱插拔 SAS硬盤或16個1.8寸 SSD硬盤。 |
| 內存提示 | DDR3 |
| 支持內存容量范圍 | 32GB/2.0TB 最大 PC3-10600 DDR3L，可通過 MAX5 擴展至 3.0TB |
| 內存插槽數量 | 32 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 1975W 220V |
| 單機電源數量 | 2 |
| 介質托架 | CD-RW 或 DVD-ROM |
| 適配器插槽 | 總共 7 個 PCIe 半長 |
| 端口 | 帶 TCP-IP 卸載引擎的集成雙千兆以太網，及 Emulex 10GBE 虛擬光纖網絡適配器 |
| 發布日期 | |
| 下架日期 | |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server 2008(64位標準版、企業版和數據中心版)、Microsoft Windows Server 2003(數據中心和數據中心 x64)、64位 Red Hat Enterprise Linux 、64位 SUSE Enterprise Linux、VMware vSphere Hypervisor |
| 產品尺寸 | Width: 440mm (17.3inches), depth: 712mm (28.0inches), height: 173mm (6.8inches) or 4 rack units (4U) |
| 產品重量 | 最大35.4kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| A14F | 69Y1853 | Intel Xeon Processor E7-4870 10C (2.40GHz 30MB L3 130w 4S) |
| A14G | 69Y1855 | Intel Xeon Processor E7-8837 8C (2.67GHz 24MB L3 130w 8S) |
| A14H | 69Y1859 | Intel Xeon Processor E7-8830 8C (2.13GHz 24MB L3 105w 8S) |
| A14J | 69Y1861 | Intel Xeon Processor E7-8867L 10C (2.13GHz 30MB L3 105w 8S) |
| A14K | 69Y1863 | Intel Xeon Processor E7-8860 10C (2.26GHz 24MB L3 130w 8S) |
| A14L | 69Y1865 | Intel Xeon Processor E7-8870 10C (2.40GHz 30MB L3 130w 8S) |
| A14M | 88Y5321 | Intel Xeon Processor E7-4807 6C (1.86GHz 18MB L3 95w 4S) |
| A14N | 88Y5323 | Intel Xeon Processor E7-4820 8C (2.00GHz 18MB L3 105w 4S) |
| A14P | 88Y5325 | Intel Xeon Processor E7-4830 8C (2.13GHz 24MB L3 105w 4S) |
| A14Q | 88Y5327 | Intel Xeon Processor E7-4860 10C (2.26GHz 24MB L3 130w 4S) |
| A14R | 88Y5397 | Intel Xeon Processor E7-4850 10C (2.00GHz 24MB L3 130w 4S) |
| A14S | 88Y5399 | Intel Xeon Processor E7-8850 10C (2.00GHz 24MB L3 130w 8S) |
| A14T |
69Y1852 69Y1893 |
Addl Intel Xeon Processor E7-4870 10C 2.40GHz 30MB Cache 130w |
| A14U |
69Y1854 69Y1894 |
Addl Intel Xeon Processor E7-8837 8C 2.67GHz 24MB Cache 130w |
| A14V |
69Y1858 69Y1896 |
Addl Intel Xeon Processor E7-8830 8C 2.13GHz 24MB Cache 105w |
| A14W |
69Y1860 69Y1897 |
Addl Intel Xeon Processor E7-8867L 10C 2.13GHz 30MB Cache 105w |
| A14X |
69Y1862 69Y1898 |
Addl Intel Xeon Processor E7-8860 10C 2.26GHz 24MB Cache 130w |
| A14Y |
69Y1864 69Y1899 |
Addl Intel Xeon Processor E7-8870 10C 2.40GHz 30MB Cache 130w |
| A14Z |
88Y5320 69Y1889 |
Addl Intel Xeon Processor E7-4807 6C 1.86GHz 18MB Cache 95w |
| A150 |
88Y5322 69Y1890 |
Addl Intel Xeon Processor E7-4820 8C 2.00GHz 18MB Cache 105w |
| A151 |
88Y5324 69Y1891 |
Addl Intel Xeon Processor E7-4830 8C 2.13GHz 24MB Cache 105w |
| A152 |
88Y5326 69Y1892 |
Addl Intel Xeon Processor E7-4860 10C 2.26GHz 24MB Cache 130w |
| A153 |
88Y5396 88Y5358 |
Addl Intel Xeon Processor E7-4850 10C 2.00GHz 24MB Cache 130w |
| A154 |
88Y5398 88Y5357 |
Addl Intel Xeon Processor E7-8850 10C 2.00GHz 24MB Cache 130w |
| 系統板 | ||
| 3873 |
59Y6120 59Y6135 |
IBM Hot Swap SAS Hard Disk Drive Backplane |
| 4191 |
59Y6236 59Y6213 |
IBM eXFlash 8x 1.8" HS SAS SSD Backplan |
| A14D |
88Y5361 69Y1888 |
IBM x3850 X5 and x3950 X5 Memory Expansion Card |
| 內存 | ||
| 1701 |
46C7444 46C7448 |
4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 1706 |
46C7476 46C7482 |
8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 1707 |
46C7477 46C7483 |
16GB (1x16GB, 4Rx4, 1.5V) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 1712 |
44T1587 44T1592 |
2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 1713 |
44T1597 44T1599 |
4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 2429 | 49Y1532 | 2GB MAX5 1x2GB 1Rx8 1.5V PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 2431 | 49Y1534 | 4GB MAX5 1x4GB DualRankx8 PC310600 CL9 ECC DDR3 1333MHz LP RDIMM |
| 2432 | 49Y1535 | 8GB MAX5 1x8GB QuadRankx8 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 2433 | 49Y1536 | 16GB MAX5 1x16G QuadRankx4 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 8939 |
49Y1382 49Y1400 |
16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| 8942 |
49Y1389 49Y1407 |
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
| A14E |
49Y1381 49Y1399 |
8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1CP |
90Y3100 90Y3101 |
32GB (1x32GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1MH | 90Y3171 | 4GB MAX5 (1x4GB, 2Gb, 2Rx8, 1.35V) PC3L-10600R-999 LP ECC RDIMM |
| A1N7 | 90Y3172 | 8GB MAX5 1x8GB, 4Rx8, 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1N8 | 90Y3173 | 16GB MAX5 1x16GB 4Rx4 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
| A1R2 | 90Y3205 | 32GB MAX5 (4GB, 4Rx4, 1.35V) PC3L-8500 DDR3-1066MHz LP RDIMM |
| 硬盤 | ||
| 81Y9690 | IBM 1TB 7.2K 6Gbps NL SAS 2.5" SFF HS HDD SFF | |
| 3745 |
43W7715 43W7714 |
IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD |
| 5314 |
43W7735 43W7734 |
IBM 50GB SATA 1.8" NHS SSd SL |
| 5405 |
42D0749 42D0747 |
IBM 160GB 7200 SATA 2.5" SFF Slim-HS HDD |
| 5407 |
42D0752 42D075342D0754 |
IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD |
| 5409 |
42D0709 42D0707 |
IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD SFF |
| 5412 |
44W2296 44W2294 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5413 |
44W2266 44W2264 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5420 |
43W7747 43W7746 |
IBM 200GB SATA 1.8" MLC SSD |
| 5428 |
43W7727 43W7726 |
IBM 50GB SATA 1.8" MLC SSd SFF |
| 5433 |
49Y2005 49Y2003 |
IBM 600GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5522 |
42D0674 42D0672 |
IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5536 |
42D0679 42D0677 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5537 |
42D0634 42D0632 42D0633 |
IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5599 |
42D0639 42D0637 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| A1AV |
81Y9730 81Y9732 |
IBM 1TB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD SFF |
| A1NX |
81Y9724 81Y9722 |
IBM 250GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A1NZ |
81Y9728 81Y9726 |
IBM 500GB 7.2K 6Gbps NL SATA 2.5" SFF HS HDD |
| A282 |
81Y9652 81Y9650 |
IBM 900GB 10K 6Gbps SAS 2.5" SFF HS HDD |
| A283 |
81Y9672 81Y9670 |
IBM 300GB 15K 6Gbps SAS 2.5" SFF HS HDD |
| A2FN |
43W7719 43W7718 |
IBM 200GB SATA 2.5" MLC HS SSd SFF |
| A2U3 |
90Y8645 90Y8643 |
IBM 256GB SATA 2.5" MLC HS Entry SSD SFF |
| A2U4 |
90Y8650 90Y8648 |
IBM 128GB SATA 2.5" MLC HS Entry SSD SFF |
| RAID卡 | ||
| 93 |
46M0850 46M0829 |
ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 94 |
46M0853 46M0830 |
ServeRAID M5025 SAS/SATA Controller - PCI-E x8 |
| 95 |
46M0862 46M0831 |
ServeRAID M1015 SAS/SATA Controller |
| 3577 |
44E8692 44E8689 |
ServeRAID-BR10i SAS/SATA Controller |
| 3877 |
46M0922 46M0916 46M0918 |
ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 3889 |
46M0971 46M0969 |
ServeRAID B5015 SSD Controller Half x8 PCI-E |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 5446 | 81Y1530 | Mellanox ConnectX-2 VPI Single-port QSFP QDR IB/10GbE PCI-E 2.0 HCA |
| 5447 | 81Y1534 | Mellanox ConnectX-2 VPI Dual-port QSFP QDR IB/10GbE PCI-E 2.0 HCA |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5763 | 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| A148 | 49Y7940 | Emulex 10GbE Integrated Virtual Fabric |
| A18Y |
49Y7913 49Y7910 |
Broadcom NetXtreme II Dual Port 10GBaseT Adapter for IBM System x |
| A18Z |
49Y7953 49Y7950 |
Emulex 10GbE Virtual Fabric Adapter II for IBM System x |
| A1M4 |
81Y9991 81Y9990 |
Mellanox ConnectX-2 Dual Port 10GbE Adapter for IBM System x |
| A2F6 | 95Y3450 | Mellanox ConnectX-3 VPI Single-port QSFP QDR/FDR10/10GbE HCA |
| A2F7 | 95Y3454 | Mellanox ConnectX-3 VPI Dual-port QSFP QDR/FDR10/10GbE HCA |
| A2F8 | 95Y3458 | Mellanox ConnectX-3 EN Dual-port QSFP+ 40GbE Adapter |
| A2V3 |
90Y9353 90Y9352 |
Broadcom NetXtreme I Quad Port GbE Adapter for IBM System x |
| A2V4 |
90Y9371 90Y9370 |
Broadcom NetXtreme I Dual Port GbE Adapter for IBM System x |
| 適配卡 | ||
| 81Y4527 | 1.28TB High IOPS MLC Duo Adapter For IBM | |
| 81Y4531 | 640GB High IOPS MLC Adapter For IBM | |
| 81Y4535 | 320GB High IOPS Slc Adapter For IBM | |
| 81Y4539 | 640GB High IOPS Slc Duo Adapter For IBM | |
| 69 |
49Y4217 49Y4216 42C1819 |
Brocade 10Gb SFP+ SR Optical Transceiver |
| 96 |
46M0888 46M0877 |
IBM 160GB High IOPS SS Class SSD PCIe adapter. |
| 1649 |
46M0900 46M0898 |
IBM 320GB High IOPS MS Class SSD PCIe Adapter. |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 5104 |
46M0087 49Y4379 |
IBM x3850 X5 and x3950 X5 QPI Wrap Card |
| 5982 |
68Y7355 46M0907 |
IBM 6Gb SAS HBA |
| 5985 |
68Y7383 81Y4519 |
640GB High IOPS MLC Duo Adapter for IBM |
| A2MY |
95Y3767 95Y3750 |
Mellanox ConnectX-2 Dual-port QSFP QDR IB |
| 光纖卡 | ||
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 53952xx | IBM 2200VA LCD 2U Rack UPS (100V/120V) | |
| 53953AX | IBM 3000VA LCD 3U Rack UPS (100V/120V) | |
| 53953JX | IBM 3000VA LCD 3U Rack UPS (200V/208V) | |
| 53956AX | IBM 6000VA LCD 4U Rack UPS (200V/208V) | |
| 53956KX | IBM 6000VA LCD 4U Rack UPS (230V) | |
| 53959KX | IBM 11000VA LCD 5U Rack UPS (200V/208V/230V) | |
| 2111 |
46M0089 59Y6139 |
IBM 1975W Power Supply |
| 4782 |
60Y0310 60Y0332 |
IBM 675W HE Redundant Power Supply |
| 電池 | ||
| 5744 |
46M0857 46M0917 |
ServeRAID M5000 Series Battery Assembly |
| 光驅 | ||
| 4161 | 44W3251 | IBM UltraSlim Enhanced SATA DVD-ROM |
| 4163 |
44W3253 46M0902 |
IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁帶機 | ||
| 3572-Sxx | IBM System Storage TS2900 Tape Autoloader | |
| 3573-xxx | IBM System Storage TS3100/TS3200 Tape Library (all models) | |
| 3576-xxx | IBM System Storage TS3310 Modular Tape Library (all models) | |
| 3580-H3x | IBM System Storage TS2230 Tape Drive Express Model | |
| 3580-H4x | IBM System Storage TS2240 Tape Drive Model | |
| 3580-H5S | IBM System Storage TS2250 Tape Drive Model H5S | |
| 3580-S53 | IBM System Storage TS2350 Tape Drive Model S53 | |
| 3584-xxx | IBM System Storage TS3500 Tape Library (all models) | |
| 3628L3X | IBM Half High LTO Gen 3 External SAS Tape Drive | |
| 3628L4X | IBM Half High LTO Gen 4 External SAS Tape Drive | |
| 3628L5X | IBM Half High LTO Gen 5 External SAS Tape Drive | |
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5345 |
49Y9902 49Y9898 |
IBM Half High LTO Gen 5 Internal SAS Tape Drive |
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5395 |
43W8492 39M5636 |
IBM DDS Gen 6 USB Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 線纜 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 3700 | 40K9804 | 1m LC-LC Fiber Cable (networking) |
| 3701 | 40K9805 | 5m LC-LC Fiber Cable (networking) |
| 3702 | 40K9806 | 25m LC-LC Fiber Cable (networking) |
| 3704 |
13N1943 39M5697 |
5m LC-LC Fiber Cable |
| 3705 |
13N1944 39M5698 |
25m LC-LC Fiber Cable |
| 3707 |
42C2061 39R6531 |
IBM 3M SAS Cable |
| 3708 |
42C2060 39R6529 |
IBM 1M SAS Cable |
| 3791 | 40K8932 | 0.6m Yellow Cat5e Cable |
| 3792 | 40K8935 | 1.5m Yellow Cat5e Cable |
| 3793 | 40K8960 | 3m Yellow Cat5e Cable |
| 3794 | 40K8939 | 10m Yellow Cat5e Cable |
| 3795 | 40K8941 | 25m Yellow Cat5e Cable |
| 3796 | 40K8963 | 0.6m Green Cat5e Cable |
| 3797 | 40K5627 | 1.5m Green Cat5e Cable |
| 3798 | 40K5791 | 3m Green Cat5e Cable |
| 3799 | 40K5792 | 10m Green Cat5e Cable |
| 3800 | 40K8868 | 25m Green Cat5e Cable |
| 3801 | 40K8949 | 0.6m Blue Cat5e Cable |
| 3802 | 40K5564 | 1.5m Blue Cat5e Cable |
| 3803 | 40K8936 | 3m Blue Cat5e Cable |
| 3804 | 40K8926 | 10m Blue Cat5e Cable |
| 3805 | 40K8929 | 25m Blue Cat5e Cable |
| 3859 | 46D0161 | 1m Mellanox Copper Cable for 4X IB and |
| 3860 | 46D0165 | 3m Mellanox Copper Cable for 4X IB and |
| 3861 | 46D0169 | 5m Mellanox Copper Cable for 4X IB and |
| 3862 | 46D0173 | 8m Mellanox Copper Cable for 4X IB and |
| A1RF | 46M2590 | 10A/250V C13 to NEMA 6-15P 2.8m line cord |
| A2F9 | 90Y3809 | 1m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FA | 90Y3813 | 3m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FB | 90Y3817 | 5m Mellanox QSFP Passive Copper InfiniBand Cable |
| A2FC | 90Y3821 | 10m Mellanox QSFP Optical InfiniBand Cable |
| A2FD | 90Y3825 | 15m Mellanox QSFP Optical InfiniBand Cable |
| A2FE | 90Y3829 | 20m Mellanox QSFP Optical InfiniBand Cable |
| A2FG | 90Y3837 | 30m Mellanox QSFP Optical InfiniBand Cable |
| A2FS | 95Y3462 | 3m Mellanox QSFP Optical InfiniBand Cable |
| A2FT | 95Y3466 | 5m Mellanox QSFP Optical InfiniBand Cable |
| 其它 | ||
| 14102RX | IBM 25RU standard rack | |
| 14104RX | IBM 42U S2 standard rack | |
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 1746A2D | IBM System Storage DS3512 Express Dual Controller Storage System | |
| 1746A2S | IBM System Storage DS3512 Express Single Controller Storage System | |
| 1746A4D | IBM System Storage DS3524 Express Dual Controller Storage System | |
| 1746A4S | IBM System Storage DS3524 Express Single Controller Storage System | |
| 174712X | IBM System Storage EXP2512 Express Storage Enclosure | |
| 174724X | IBM System Storage EXP2524 Express Storage Enclosure | |
| 1754A1X | IBM Local 1X8 Console Manager | |
| 1754A2X | IBM Local 2X16 Console Manager | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 2076-xxx | IBM Storwize V7000 | |
| 2812-A14 | IBM XIV Storage System (Machine Type 2812) Model A14 | |
| 362516X | IBM RDX 160 GB External USB Drive | |
| 362532X | IBM RDX 320 GB External USB Drive | |
| 362550X | IBM RDX 500 GB External USB Drive | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39R6475 | 4Gb Short Wave SFP | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
| 43V6109 | IBM 0U 24 C13 Switched and Monitored 30A 3 Phase PDU | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4110 | IBM LCD UPS Network Management Card | |
| 46M4116 | IBM 0U 24 C13 Switched and Monitored 30A PDU | |
| 46M4125 | IBM 0U 24 C13 30A 3 Phase PDU | |
| 46M4128 | IBM 0U 24 C13 30A PDU | |
| 46M4134 | IBM 0U 12 C19/12 C13 Switched and Monitored 50A 3 Phase PDU | |
| 46M4140 | IBM 0U 12 C19/12 C13 50A 3 Phase PDU | |
| 46M4167 | 1U Switch. and Monit. PDU 9 C19 / 3 C13 3ph 30A fixed 4.3m L21-30P. | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 93072PX | IBM S2 25U Static Base Cabinet | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 93604EX | IBM 42U 1200mm Deep Dynamic Expansion Rack | |
| 93604PX | IBM 42U 1200mm Deep Dynamic Rack | |
| 93614EX | IBM 42U 1200mm Deep Static Expansion Rack | |
| 93614PX | IBM 42U 1200mm Deep Static Rack | |
| 93624EX | IBM 47U 1200mm Deep Static Expansion Rack | |
| 93624PX | IBM 47U 1200mm Deep Static Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 3876 |
46M0914 46M0912 |
IBM 6Gb Performance Optimized HBA |
| 4042 | 44X0080 | Power Supply Blank Filler |
| 4192 |
59Y6268 59Y6267 |
IBM MAX5 to x3850 X5 Cable Kit |
| 4198 |
59Y6272 59Y6271 |
IBM eX5 MAX5 2-Node EXA Scalability Kit |
| 4199 |
59Y6284 59Y6265 |
IBM MAX5 for System x |
| 5103 |
46M0086 46M0072 |
IBM x3850 X5 QPI Scalability Kit |
| 5106 |
46M0932 46M0930 |
ServeRAID M5000 Series Advance Feature Key |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 5715 | 49Y4278 | Emulex VFA II FCoE/iSCSI License for IBM System x |
| 6437 | 59Y6307 | IBM MAX5 for System x Memory DIMM Filler |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 9749 |
46M0865 46M0832 |
ServeRAID M1000 Series Advance Feature |
| A10C |
81Y4428 81Y4426 |
ServeRAID M5000 Series Performance Accelerator Key |
| A19H |
88Y6530 88Y6529 |
IBM MAX5 V2 for System x |
| A1NB |
81Y4529 81Y4527 |
1.28TB High IOPS MLC Duo Adapter For IBM System X |
| A1NP |
46M4990 41Y8296 |
IBM USB Memory Key for VMware ESXi 4.1 |
| A2G0 |
41Y8298 41Y8306 |
IBM Blank USB Memory Key for VMWare ESXi Downloads |
| A2VC |
94Y9770 41Y8300 |
IBM USB Memory Key for VMWare ESXi 5.0 |
