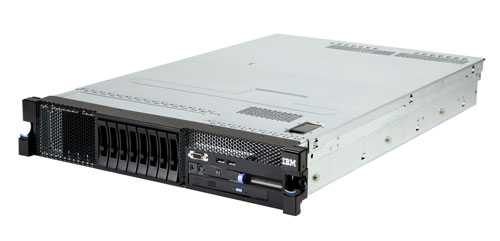

IBM X3650M2 (7947)
| 整機信息 | |
| 名稱 | IBM System x3650 M2 (7947) |
| 型號 | 7947 |
| 品牌 | IBM |
| 類型 | PC服務器 |
| CPU信息 | Up to 2 quad-core Intel Xeon 5500 Series with Intel QuickPathInterconnect (QPI) technology,up to 2.93GHz and up to 1333MHz front-side bus. |
| CPU類型 | Intel 至強 5500 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 2U |
| 硬盤信息 | 最大硬盤容量：2.4TB |
| 最大硬盤數量 | 12 |
| 內存提示 | DDR3 |
| 支持內存容量范圍 | 最大內存容量：128GB |
| 內存插槽數量 | 16 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 電源功率：675W |
| 單機電源數量 | 2 |
| 介質托架 | CD-RW 或 DVD-ROM |
| 適配器插槽 | 4 個 PCI-Express(4x8) 第二代插槽; 2x8 全長、全高；1x8 半長、全高; 1x8 小型 4x8 通過可選的擴展卡可轉換為 2x16 ;另外,通過可選的擴展卡可提供 2 個 PCI-X。 |
| 端口 | 集成的雙千兆以太網(標配 2個端口,加 2個可選端口) ；Serial,1 Video 前面,1 Video后面,2 RJ-45,2 USB (后面),2 USB (前面) |
| 發布日期 | |
| 下架日期 | 2010/2/16 |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server 2003; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; TurboLinux Enterprise Server; Novell Netware 和 VMware ESXi 3.5嵌入式虛擬機管理程序(計劃于 2009年 2季度推出). |
| 產品尺寸 | 85.4×443.6×698mm |
| 產品重量 | 最大29.6Kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 362 |
44E5184 46M1077 |
Addl Intel Xeon Processor E5502 2C (1.86GHz 4MB L3 Cache 800MHz 80w) |
| 704 | 59Y3122 | Intel Xeon Processor L5530 4C (2.40GHz 8MB L3 Cache 1066MHz 60w) |
| 3637 | 44E5177 | Intel Xeon Processor E5502 2C (1.86GHz 4MB L3 Cache 800MHz 80w) |
| 3638 | 44E5178 | Intel Xeon Processor E5506 4C (2.13GHz 4MB L3 Cache 800MHz 80w) |
| 3639 | 44E5179 | Intel Xeon Processor L5520 4C (2.26GHz 8MB L3 Cache 1066MHz 60w) |
| 3640 | 44E5180 | Intel Xeon Processor E5530 4C (2.4GHz 8MB L3 Cache 1066MHz 80w) |
| 3641 | 44E5181 | Intel Xeon Processor X5550 4C (2.66GHz 8MB L3 Cache 1333MHz 95w) |
| 3642 | 44E5182 | Intel Xeon Processor X5560 4C (2.8GHz 8MB L3 Cache 1333MHz 95w) |
| 3643 | 44E5183 | Intel Xeon Processor X5570 4C (2.93GHz 8MB L3 Cache 1333MHz 95w) |
| 4410 |
44E5185 46M1079 |
Addl Intel Xeon Processor E5506 4C (2.13GHz 4MB L3 Cache 800MHz 80w) |
| 4411 |
44E5186 46M1080 |
Addl Intel Xeon Processor L5520 4C (2.26GHz 8MB L3 Cache 1066MHz 60w) |
| 4412 |
44E5187 46M1083 |
Addl Intel Xeon Processor E5530 4C (2.4GHz 8MB L3 Cache 1066MHz 80w) |
| 4413 |
44E5188 46M1085 |
Addl Intel Xeon Processor X5550 4C 2.66GHz 8MB Cache 1333MHz 95w |
| 4414 |
44E5189 46M1086 |
Addl Intel Xeon Processor X5560 4C 2.80GHz 8MB Cache 1333MHz 95w |
| 4415 |
44E5190 46M1087 |
Addl Intel Xeon Proc X5570 4C (2.93GHz 8MB L3 Cache 1333MHz 95w) |
| 4449 |
46M1039 46M1078 |
Addl Intel Xeon Processor E5504 4C 2.00GHz 4MB Cache 800MHz 80w |
| 4453 |
59Y3123 59Y3124 |
Addl Intel Xeon Processor L5530 4C (2.40GHz 8MB Cache 1066MHz 60W) |
| 6990 | 46M1035 | Intel Xeon Processor E5504 4C (2.0GHz 4MB L3 Cache 800MHz 80w) |
| 6991 | 46M1036 | Intel Xeon Processor E5520 4C (2.26GHz 8MB L3 Cache 1066MHz 80w) |
| 6992 | 46M1037 | Intel Xeon Processor L5506 4C (2.13GHz 4MB L3 Cache 800MHz 60w) |
| 6993 | 46M1038 | Intel Xeon Processor E5540 4C (2.53GHz 8MB L3 Cache 1066MHz 80w) |
| 7750 |
46M1040 46M1081 |
Addl Intel Xeon Proc E5520 4C (2.26GHz 8MB L3 Cache 1066MHz 80w) |
| 7751 |
46M1041 46M1082 |
Addl Intel Xeon Processor L5506 4C (2.13GHz 4MB L3 Cache 800MHz 60w) |
| 7752 |
46M1042 46M1084 |
Addl Intel Xeon Processor E5540 4C 2.53GHz 8MB Cache 1066MHz 80w |
| 內存 | ||
| 1907 |
46C0585 46C7445 46C7449 46C7453 |
8GB (1x8GB) Dual Rank PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3963 |
44T1470 44T1480 44T1490 |
1GB (1x1GB, Single Rankx8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3964 |
44T1471 44T1481 44T1491 |
2GB (1x2GB, Dual Rank x8) PC3-10600 CL9 ECC DDR3-1333 LP RDIMM |
| 3965 |
44T1472 44T1482 44T1492 |
2 GB (1x 2 GB) PC3-10600 CL9 ECC DDR3 1333 MHz Chipkill LP RDIMM |
| 3966 |
44T1473 44T1483 44T1493 46C0584 |
4 GB (1x 4 GB) PC3-10600 CL9 ECC DDR3 1333 MHz Chipkill LP RDIMM |
| 硬盤 | ||
| 43W7535 | IBM 73 GB 10K SAS 2.5" SFF Slim-HS HDD | |
| 3745 |
43W7715 43W7714 |
IBM 50GB SATA 2.5" SFF Slim-HS High IOPS SSD |
| 3747 | 43W7691 | IBM 31.4GB 2.5" Solid State Drive SFF |
| 5197 | 43W7731 | 50 GB Simple Swap SATA SSD |
| 5403 |
41Y8265 41Y8264 |
IBM 31.4GB SATA 2.5'' SFF Slim-HS SSD V2 |
| 5405 |
42D0749 42D0747 |
IBM 160GB 7200 SATA 2.5" SFF Slim-HS HDD |
| 5407 |
42D0752 42D075342D0754 |
IBM 500GB 7200 NL SATA 2.5" SFF Slim-HS HDD |
| 5409 |
42D0709 42D0707 |
IBM 500GB 7200 6Gbps NL SAS 2.5" SFF Slim-HS HDD SFF |
| 5412 |
44W2296 44W2294 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5413 |
44W2266 44W2264 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS SED SFF |
| 5522 |
42D0674 42D0672 |
IBM 73GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5536 |
42D0679 42D0677 |
IBM 146GB 15K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 5537 |
42D0634 42D0632 42D0633 |
IBM 146GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD |
| 5578 |
43W7540 43W7536 |
IBM 146 GB 10K SAS 2.5" SFF Slim-HS HDD |
| 5579 |
43W7547 43W7545 |
IBM 73 GB 15K SAS 2.5" SFF Slim-HS HDD |
| 5595 |
43W7671 43W7670 |
300GB 10K SATA 2.5" Slim-HS HDD |
| 5599 |
42D0639 42D0637 |
IBM 300GB 10K 6Gbps SAS 2.5" SFF Slim-HS HDD SFF |
| 7552 |
44X0100 46D2516 |
Hot swap SAS/SATA 4 Pac HDD Kit for IBM System |
| RAID卡 | ||
| 93 |
46M0850 46M0829 |
ServeRAID M5015 SAS/SATA Controller (Battery not included) |
| 95 |
46M0862 46M0831 |
ServeRAID M1015 SAS/SATA Controller |
| 3559 |
43W4340 44E8825 43W4339 |
ServeRAID-MR10is VAULT SAS/SATA Controller |
| 3571 |
43W4298 43W4296 |
ServeRAID-MR10i SAS/SATA Controller - PCI-E x8 |
| 3577 |
44E8692 44E8689 |
ServeRAID-BR10i SAS/SATA Controller |
| 3584 |
44E8839 44E8695 44E8696 |
ServeRAID-MR10M SAS/SATA Controller with Remote Battery Kit |
| 3877 |
46M0922 46M0916 46M0918 |
ServeRAID M5014 SAS/SATA Controller (Battery not included) |
| 網卡 | ||
| 1485 |
39Y6071 39Y6066 |
NetXtreme II 1000 Express G Ethernet Adapter- PCIe |
| 1637 |
42C1823 42C1820 42C1822 |
Brocade 10Gb CNA for IBM System x PCIe 8x |
| 2944 |
39Y6129 39Y6126 |
PRO/1000 PT Dual Port Server Adapter by Intel |
| 2974 |
39Y6138 39Y6139 39Y6136 |
PRO/1000 PT Quad Port Server Adapter |
| 2995 |
42C1783 42C1780 49Y4205 |
NetXtreme II 1000 Express Dual Port Ethernet |
| 3585 |
44X0137 46M1076 |
Dual port 1Gb Ethernet Daughter Card n/a n/a Dedicated |
| 5451 |
42C1792 42C1793 42C1790 |
NetXtreme II 10 GigE Express Fiber SR Adapter |
| 5751 |
42C1800 42C1802 42C1803 |
QLogic 10Gb CNA for IBM System x PCI-E |
| 5763 | 59Y1887 | QLogic QLE7340 single-port 4X QDR IB x8 |
| 5766 |
49Y4223 49Y4220 |
NetXtreme II 1000 Express Quad Port Ethernet Adapter |
| 5767 |
49Y4233 49Y4230 |
Intel Ethernet Dual Port Server Adapter I340- T2 for IBM System x |
| 5768 |
49Y4243 49Y4240 |
Intel Ethernet Quad Port Server Adapter I340- T4 for IBM System x |
| 適配卡 | ||
| 96 |
46M0888 46M0877 |
IBM 160GB High IOPS SS Class SSD PCIe adapter. |
| 1649 |
46M0900 46M0898 |
IBM 320GB High IOPS MS Class SSD PCIe Adapter. |
| 2975 |
42C1752 42C1753 42C1750 |
PRO/1000 PF Server Adapter Half x4 PCIe by intel. |
| 2976 |
39Y6148 39Y6149 39Y6146 |
QLogic iSCSI Single Port PCIe HBA for IBM System x |
| 2977 |
42C1772 42C1773 42C1770 |
QLogic iSCSI Dual Port PCIe HBA for IBM System x |
| 3583 |
44E8702 44E8700 |
IBM 3Gb SAS HBA Controller v2 - PCI-E x8 1,2 N 2 |
| 5086 |
44X0138 46M1072 |
PCI-Express (2 x8 slots; 1 FH/FL, 1 LP ) Riser |
| 5087 |
44X0141 46M1074 |
PCI-X (2 slots; 1 FH/FL, 1 LP ) Riser Card |
| 5088 |
44X0144 46M1073 |
PCI-Express (1 x16 slot; FH/FL) Riser Card |
| 光纖卡 | ||
| 39M5894 | DS4000 FC 4Gbps - PCI-X Single Port HBA | |
| 39M5895 | DS4000 FC 4Gbps - PCI-X Dual Port HBA | |
| 42D0405 | Emulex 4Gb FC Single-Port PCI-X HBA for IBM System x | |
| 42D0407 | Emulex 4Gb FC Dual-Port PCI-X HBA for IBM System x | |
| 1698 |
43W7491 42C2069 42C2070 |
Emulex 4Gb FC Single-Port PCI-E HBA for IBM System x |
| 1699 |
43W7492 42C2071 42C2072 |
Emulex 4Gb FC Dual-Port PCI-E HBA for IBM System x |
| 3567 |
42C2179 39R6525 39R6526 |
QLogic 4Gb FC Single-Port PCIe HBA for IBM System x |
| 3568 |
42C2182 39R6527 39R6528 |
QLogic 4Gb FC Dual-Port PCIe HBA for IBM System x |
| 3578 |
42D0502 42D0501 42D0507 |
QLogic 8Gb FC Single-port HBA for IBM System x |
| 3579 |
42D0511 42D0510 42D0516 |
QLogic 8Gb FC Dual-port HBA for IBM System x |
| 3580 |
42D0486 42D0485 42D0491 |
Emulex 8Gb FC Single-port HBA for IBM System x |
| 3581 |
42D0495 42D0494 42D0500 |
Emulex 8Gb FC Dual-port HBA for IBM System x |
| 3589 |
46M6051 46M6049 42D0549 42D6049 46M6061 |
Brocade 8Gb FC Single-port HBA for IBM System x |
| 3591 |
46M6052 46M6050 46M6062 |
Brocade 8Gb FC Dual-port HBA for IBM System x |
| 3885 |
59Y1988 59Y1987 59Y1992 |
Brocade 4Gb FC Single-port HBA for IBM System x |
| 3886 |
59Y1994 59Y1993 59Y1998 |
Brocade 4Gb FC Dual-port HBA for IBM System x |
| 電源 | ||
| 21301RX | IBM UPS3000 LV | |
| 21302RX | IBM UPS3000 HV | |
| 21303RX | IBM UPS 7500Xhv | |
| 21304RX | IBM UPS 10000Xhv | |
| 24195KX | IBM UPS5000 HV | |
| 39Y7201 | Power supply 675W. | |
| 39Y7355 | Power supply 835W. | |
| 39Y8857 | IBM UPS 3U Online Battery Pack | |
| 40K9620 | IBM UPS3000 Ebm | |
| 2100 |
44X0147 46M1075 |
IBM 675W Redundant AC Power Supply |
| 電池 | ||
| 5744 |
46M0857 46M0917 |
ServeRAID M5000 Series Battery Assembly |
| 5864 |
44E8840 44E8826 |
ServeRAID-MR10i Li-Ion Battery |
| 光驅 | ||
| 4161 |
44W3251 46M0901 |
IBM UltraSlim Enhanced SATA DVD-ROM |
| 4162 | 44W3252 | UltraSlim Enhanced SATA CD-RW / DVD-ROM Combo |
| 4163 |
44W3253 46M0902 |
IBM UltraSlim Enhanced SATA Multi-Burner |
| 磁帶機 | ||
| 87651UX | 1U Tape Drive Enclosure | |
| 8767HHX | Half High Tape Drive Enclosure | |
| 5392 |
43W8487 43W8480 |
IBM DDS Gen 5 SATA Tape Drive10 3.5" systems |
| 5393 |
43W8490 43W8478 |
IBM Half High LTO Gen 3 SAS Tape Drive |
| 5395 |
43W8492 39M5636 |
IBM DDS Gen 6 USB Tape Drive |
| 5397 |
44E8897 44E8895 |
IBM Half-high LTO Gen 4 SAS Tape Drive |
| 5711 |
49Y9880 46C5399 |
IBM DDS Generation 5 USB Tape Drive |
| 7551 |
44X0073 49Y9883 |
IBM x3650-M2 RDX and DDS Internal Enablement kit |
| 磁帶 | ||
| 5707 | 46C5374 | IBM RDX 160GB Cartridge |
| 5708 | 46C5376 | IBM RDX 320GB Cartridge |
| 5709 | 46C5378 | IBM RDX 500GB Cartridge |
| 線纜 | ||
| 31R3132 | IBM 3M Console Switch Cable (USB) | |
| 40K9614 | IBM DPI 30a Cord (NEMA L6-30P) | |
| 40K9615 | IBM DPI 60a Cord (IEC 309 2P+G) | |
| 40K9772 | C19 4.3 meter Line Cord - NEMA L6-20P | |
| 其它 | ||
| 172317X | 1U 17in Flat Panel Console Kit | |
| 172319X | 1U 19in Flat Panel Console Kit | |
| 17231RX | IBM 1U 17" Flat Panel console Kit w/ Optical Drive Bay | |
| 17233RX | IBM 1U 15" Flat Panel Console Kit | |
| 17237RX | IBM 19" Fixed Shelf Option | |
| 172621X | IBM System Storage DS3200 | |
| 172622X | IBM System Storage DS3200 | |
| 172631X | IBM System Storage DS3300 iSCSI Single Controller Model | |
| 172632X | IBM System Storage DS3300 iSCSI Dual Controller Model | |
| 172641X | IBM System Storage DS3400 | |
| 172642X | IBM System Storage DS3400 | |
| 172701X | IBM System Storage EXP3000 | |
| 17351GX | IBM Local 2x8 Console Manager (LCM2) | |
| 17352GX | IBM Global 2x16 Console Mngr(GCM2) | |
| 17353LX | IBM 1 x 8 Console Switch | |
| 17354LX | IBM 2 x 16 Console Switch | |
| 1754D1X | IBM Global 2X2X16 Console Manager | |
| 1754D2X | IBM Global 4X2X32 Console Manager | |
| 39M2816 | IBM Dpi C13 PDU+ | |
| 39Y8905 | DPI 100-127v PDU with Fixed Nema L5-15P line cord | |
| 39Y8923 | IBM Enterprise C19 3 phase PDU (60a) | |
| 39Y8938 | DPI 30amp/125V Front-end PDU with NEMA L5-30P | |
| 39Y8939 | DPI 30amp/250V Front-end PDU with NEMA L6-30P | |
| 39Y8940 | DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd connector | |
| 39Y8941 | IBM Enterprise C13 PDU | |
| 39Y8948 | IBM Enterprise C19 PDU | |
| 39Y8951 | DPI Universal Rack PDU with Nema L5-20P and L6-20P | |
| 40K1692 | IBM External USB Floppy Drive | |
| 40K5372 | IBM Keyboard w/ Integrated Pointing Device USB - US English 103P | |
|
42C7526 42C7528 |
IBM Virtual Media Key（新遠程管理卡） | |
| 46C5364 | IBM RDX160 Internal USB Bundle | |
| 46C5387 | IBM RDX320 Internal USB Bundle | |
| 46C5388 | IBM RDX500 Internal USB Bundle | |
| 46M4002 | IBM 1U 9 C19/3 C13 Switched and Monitored DPI PDU | |
| 46M4003 | IBM 1U 9 C19/3 C13 Switched and Monitored 60A 3 Phase PDU | |
| 46M4004 | IBM 1U 12 C13 Switched and Monitored DPI PDU | |
| 46M4005 | IBM 1U 12 C13 Switched and Monitored 60A 3 Phase PDU | |
| 71762MX | IBM Ultra Density Enterprise C19/C13 PDU+ Module | |
| 71762NX | IBM Ultra Density Enterprise C19/C13 PDU Module | |
| 71763MU | IBM Ultra Density Enterprise C19/C13 PDU+ 60A/208V/3ph | |
| 71763NU | IBM Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph | |
| 93072PX | IBM S2 25U Static Base Cabinet | |
| 93072RX | IBM 25U S2 standard rack | |
| 93074RX | NetBAY S2 42U Standard Rack Cabinet | |
| 93074XX | IBM 42U S2 expansion rack | |
| 93084EX | IBM 42U Enterprise Expansion Rack | |
| 93084PX | IBM 42U Enterprise Rack | |
| 99564RX | IBM S2 42U Dynamic Standard Rack Cabinet | |
| 99564XX | IBM S2 42U Dynamic Expansion Rack Cabinet | |
| 1749 |
59Y8348 41Y8283 |
IBM USB Memory Key for VMware ESXi 3.5 Update 5 |
| 1774 |
40K6887 41Y8269 |
IBM USB Memory Key for VMware ESXi 3.5 Update 4 |
| 1776 |
46M4989 41Y8278 |
IBM USB Memory Key for VMware ESXi 47 |
| 2018 | IBM 11U Office Enablement Kit | |
| 3756 |
39Y7960 39M2895 |
IBM USB Conversion Option Pack |
| 3757 |
39Y8072 43V6147 |
IBM Single Cable USB Conversion Option (UCO) |
| 3758 |
39Y7957 39M2894 |
Virtual Media Conversion Option |
| 5080 |
43V6923 46C7526 |
IBM Virtual Media Key |
| 5106 |
46M0932 46M0930 |
ServeRAID M5000 Series Advance Feature Key |
| 5340 |
69Y2045 46M5382 |
IBM Serial Conversion Option (SCO) |
| 5341 |
69Y2046 46M5383 |
IBM Virtual Media Conversion Option Gen2 (VCO2) |
| 5710 | 46C5369 | IBM RDX Internal USB Dock |
| 8750 |
40K9490 40K9584 |
IBM Preferred Pro Keyboard USB - US English 103P |
| 8912 |
40K9491 40K9200 |
IBM 2 Button Optical Wheel Mouse - Black - USB |
| 8913 |
40K9492 40K9201 |
IBM 3 Button Optical Mouse - Black - USB |
| 9749 |
46M0865 46M0832 |
ServeRAID M1000 Series Advance Feature |
