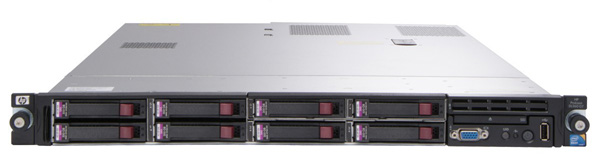

HP DL360 G7
| 整機信息 | |
| 名稱 | HP ProLiant DL360 G7 Server series |
| 型號 | |
| 品牌 | HP |
| 類型 | PC服務器 |
| CPU信息 | 最多兩個處理器 |
| CPU類型 | 英特爾 至強 |
| CPU插槽數 | 2 |
| CPU激活 | 不需要激活 |
| 機架類型 | 機架式 |
| 機架空間 | 1U |
| 硬盤信息 | 最大內部存儲容量 4.8 TB |
| 最大硬盤數量 | 8 |
| 內存提示 | 內存類型 DDR3 RDIMM或UDIMM |
| 支持內存容量范圍 | 內存最大容量 384 GB |
| 內存插槽數量 | 18 |
| 內存是否需要激活 | 不需要激活 |
| 電源描述 | 電源可選460瓦，750瓦，1200瓦高效交流電源或48伏直流電源安全 |
| 單機電源數量 | 2 |
| 介質托架 | 可選的DVD或CD-ROM光驅 |
| 適配器插槽 | 擴展插槽2個 |
| 端口 | 兩個HP NC382i雙端口多功能千兆服務器適配器 — 帶4個千兆以太網端口 |
| 發布日期 | |
| 下架日期 | 2012/3/6 |
| 服務截止期 | |
| 操作系統 | Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Oracle Solaris; Vmware; Citrix XenServer. |
| 產品尺寸 | (高x寬x長) (帶支架) 4.32x42.62x70.49 厘米(1.70x16.78x27.75英寸) |
| 產品重量 | 最大17.92kg |
| 配件信息 | ||
| FC號 | PN號 | 描述 |
| CPU | ||
| 506013-001 | Intel Xeon Processor E5506 (2.13 GHz, 4MB L3 Cache, 80 W, DDR3-800) | |
| 588062-B21 | HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit | |
| 588062-L21 | HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit | |
| 588064-B21 | HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit | |
| 588064-L21 | HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit | |
| 588066-B21 | HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit | |
| 588066-L21 | HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit | |
| 588068-B21 | HP DL360 G7 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit | |
| 588070-B21 | HP DL360 G7 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) Processor Kit | |
| 588072-B21 | HP DL360 G7 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) Processor Kit | |
| 588072-L21 | HP DL360 G7 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit | |
| 588078-B21 | HP DL360 G7 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) Processor Kit | |
| 588078-L21 | HP DL360 G7 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) FIO Processor Kit | |
| 588080-B21 | HP DL360 G7 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) Processor Kit | |
| 588080-L21 | HP DL360 G7 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit | |
| 594884-001 | Xeon Processor X5650 (2.66 GHz, 12MB L3 Cache, 95 W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) | |
| 594885-001 | Intel Xeon Processor E5640 (2.66 GHz, 12MB L3 Cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2) | |
| 594886-001 | Intel Xeon Processor E5630 (2.53 GHz, 12MB L3 Cache, 80 W, DDR3-1066, HT, Turbo 1/1/2/2) | |
| 594891-001 | Intel Xeon Processor L5630 (2.13 GHz, 12MB L3 Cache, 40 W, DDR3- 1066, HT, Turbo 1/1/2/2) | |
| 621552-B21 | HP DL360 G7 Intel® Xeon® X5667 (3.06GHz/4-core/12MB/95W) Processor Kit | |
| 621552-L21 | HP DL360G7 Intel® Xeon® X5667 (3.06GHz/4-core/12MB/95W) FIO Processor Kit | |
| 633781-B21 | HP DL360 G7 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) Processor Kit | |
| 633781-L21 | HP DL360 G7 Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit | |
| 633783-B21 | HP DL360 G7 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) Processor Kit | |
| 633783-L21 | HP DL360 G7 Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit | |
| 633785-B21 | HP DL360 G7 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) Processor Kit | |
| 633785-L21 | HP DL360 G7 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit | |
| 633787-B21 | HP DL360 G7 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) Processor Kit | |
| 633787-L21 | HP DL360 G7 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit | |
| 633789-B21 | HP DL360 G7 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) Processor Kit | |
| 633789-L21 | HP DL360 G7 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) FIO Processor Kit | |
| 633791-B21 | HP DL360 G7 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) Processor Kit | |
| 633791-L21 | HP DL360 G7 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) FIO Processor Kit | |
| 641464-001 | Intel Xeon Processor E5606 (2.13 GHz, 4MB L3 Cache, 80 Watts, DDR3-800) | |
| 641466-001 | Intel Xeon Processor E5649 (2.53 GHz, 12MB L3 Cache, 80 Watts, DDR3-1333, HT Turbo 1/1/1/1/2/2) | |
| 641604-001 | Intel Xeon Processor E5645 (2.40 GHz, 12MB L3 Cache, 80 Watts, DDR3-1333, HT Turbo 1/1/1/1/2/2) | |
| 644130-L21 | HP DL360 G7 Intel® Xeon® X5687 (3.60GHz/4-core/12MB/130W) FIO 2-processor Kit | |
| 644131-L21 | HP DL360 G7 Intel® Xeon® X5690 (3.46GHz/6-core/12MB/130W) FIO 2-processor Kit | |
| 系統板 | ||
| 516966-B21 | HP DL360G6 SFF HD Backplane Kit | |
| 602512-001/639912-001 | HP SYSTEM BOARD FOR PROLIANT DL360 G7 | |
| 641468-001 | HP SYSTEM BOARD FOR PROLIANT DL360 G7 | |
| 內存 | ||
| 462967-B21 | HP 512MB P-Series Battery Backed Write Cache Upgrade | |
| 462968-B21 | HP 256MB P-series Cache Upgrade | |
| 500656-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500656-S21 | HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500658-B21 | HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500658-S21 | HP S-Buy 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500662-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500662-S21 | HP S-Buy 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 500666-B21 | HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | |
| 500666-S21 | HP S-Buy 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit | |
| 500668-B21 | HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500670-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500670-S21 | HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500672-B21 | HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 500672-S21 | HP S-Buy 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit | |
| 534562-B21 | HP 1GB Flash Backed Cache | |
| 534916-B21 | HP 512MB Flash Backed Write Cache | |
| 593339-B21 | HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 593339-S21 | HP S-Buy 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit | |
| 604504-B21 | HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | |
| 604506-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit | |
| 619488-B21 | HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit | |
| 627812-B21 | HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory Kit | |
| 627814-B21 | HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory Kit | |
| 硬盤 | ||
| 507125-S21 | HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive S-Buy | |
| 507127-B21 | HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3 years Warranty Hard Drive | |
| 507127-S21 | HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive S-Buy | |
| 507610-B21 | HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1 year Warranty Hard Drive | |
| 507750-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1 year Warranty Hard Drive | |
| 507750-S21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive S-Buy | |
| 512545-B21 | HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-B21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drive | |
| 512547-S21 | HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive S-Buy | |
| 581284-B21 | HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 581286-B21 | HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 581286-S21 | HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive S-Buy | |
| 605835-B21 | HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive | |
| 605835-S21 | HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive S-Buy | |
| 619291-B21 | HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive | |
| 619291-S21 | HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive S-Buy | |
| 625609-B21 | HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive | |
| 625609-S21 | HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive S-Buy | |
| 627117-B21 | HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive | |
| 627117-S21 | HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive S-Buy | |
| 632492-B21 | HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | |
| 632494-B21 | HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State Drive | |
| 632502-B21 | HP 200GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| 632504-B21 | HP 400GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| 632506-B21 | HP 800GB 6G SAS MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| 636593-B21 | HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| 636595-B21 | HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| 636597-B21 | HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State Drive | |
| SCSI卡 | ||
| AH627A | HP U320e SCSI Dual Channel Host Bus Adapter | |
| 網卡 | ||
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter | |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter | |
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter | |
| 516937-B21 | HP10 GbE PCI-e G2 Dual Port Network Adapter | |
| 538696-B21 | HP NC375T PCI Express Quad Port Gigabit Server Adapter | |
| 581201-B21 | HP NC550SFP Dual Port 10GbE Server Adapter | |
| 593717-B21 | HP NC523SFP 10Gb 2-port Server Adapter | |
|
593722-B21 593743-001 |
HP NC365T 4-port Ethernet Server Adapter | |
| 614203-B21 | HP NC552SFP 10Gb 2-port Ethernet Server Adapter | |
| 適配卡 | ||
| 394791-B21 | HP NC373T PCI Express Multifunction Gigabit Server Adapter | |
| 394793-B21 | HP NC373F PCI Express Multifunction Gigabit Server Adapter | |
| 412648-B21 | HP NC360T PCI Express Dual Port Gigabit Server Adapter | |
| 412911-B21 | HP SC11Xe Host Bus Adapter | |
| 483513-B21 | HP IB 4X DDR PCI-e Dual Port 0 Memory HCA | |
| 572531-B21 | HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 578229-B21 | HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller | |
| 583211-B21 | QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA | |
| 592520-B21 | HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA | |
| 592521-B21 | HP InfiniBand 4X DDR ConnectX-2 PCIe G2 Dual Port HCA | |
| 614988-B21 | HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter | |
| 649281-B21 | HP InfiniBand FDR/EN 10/40Gb Dual Port 544QSFP Adapter | |
| 655933-B21 | NVIDIA Quadro 4000 2GB PCI-E Adapter | |
| AW520A | HP StorageWorks CN1000E Dual Port Converged Network Adapter | |
| BK835A | HP CN1100E Dual Port Converged Network Adapter | |
| BS668A | HP CN1000Q Dual Port Converged Network Adapter | |
| 光纖卡 | ||
| A8002A | HP StorageWorks FC2142SR PCI Express 4Gb Host Bus Adapter | |
| A8003A | HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e Host Bus Adapter | |
| AE311A | HP StorageWorks FC1142 4Gb PCI-Express Host Bus Adapter | |
| AE312A | HP StorageWorks FC1242SR 4Gb PCIe dual-channel Host Bus Adapter | |
| AJ763A | HP StorageWorks 82E 8Gb Dual-port PCI Express Fiber Channel Host Bus Adapter | |
| AJ764A | HP StorageWorks 82Q 8Gb Dual Port PCIe Fiber Channel Host Bus Adapter | |
| AK344A | HP StorageWorks 81Q PCIe Fiber Channel Host Bus Adapter | |
| AP767A | HP StorageWorks 41B PCI Express 4Gb Host Bus Adapter - Single port, fiber channel | |
| AP768A | HP StorageWorks 42B PCI Express 4Gb Host Bus Adapter - Dual port, fiber channel | |
| AP769A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Single port, fiber channel | |
| AP770A | HP StorageWorks PCI Express 8Gb Host Bus Adapter - Dual port, fiber channel | |
| QR558A | HP SN1000E 16Gb Single Port Fibre Channel Host Bus Adapter | |
| QR559A | HP SN1000E 16Gb Dual Port Fibre Channel Host Bus Adapter | |
| 電源 | ||
| 437573-B21 | HP 1200W Common Slot -48VDC Hot Plug Power Supply Kit | |
| 500172-B21 | HP 1200W 12V Hot Plug AC Power Supply | |
| 503296-B21 | HP 460W Common Slot Gold Hot Plug Power Supply Kit | |
| 512327-B21 | HP 750W Common Slot Gold Hot Plug Power Supply Kit | |
| 593188-B21 | HP 460W Common Slot Platinum Hot Plug Power Supply Kit | |
| 593831-B21 | HP 750W Common Slot Platinum Hot Plug Power Supply Kit | |
| AF460A | HP R5KVA 3U L630 High Voltage Uninterruptible Power System | |
| AF462A | HP R7KVA 4U 50A High Voltage Uninterruptible Power System | |
| AF466A | HP R/T3000 G2 2U L530 Low Voltage Uninterruptible Power System | |
| AF467A | HP R/T3000 G2 2U L620 High Voltage Uninterruptible Power System | |
| AF469A | HP R1.5kVA G3 1U Uninterruptible Power System | |
| AF520A | HP 4.9kVA 24A Single Phase Core Intelligent Modular Power Distribution Unit | |
| AF521A | HP 8.3kVA 40A Single Phase Core Intelligent Modular Power Distribution Unit | |
| AF522A | HP 8.6kVA 24A Three Phase Core Intelligent Modular Power Distribution Unit | |
| AF523A | HP 17.3kVA 48A Three Phase Core Intelligent Modular Power Distribution Unit | |
| AF900A | HP 11.4kVA 16A 415V Three Phase L22-20 Core Intelligent Power Distribution Unit | |
| AF901A | HP 17.3kVA 24A 415V Three Phase IEC309 Core Intelligent Power Distribution Unit | |
| AF902A | HP 17.3kVA 24A 415V Three Phase L22-30 Core Intelligent Power Distribution Unit | |
| AF914A | HP 4.9kVA 24A Single Input Single Phase Monitored Power Distribution Unit | |
| 電池 | ||
| 462969-B21 | HP 650 mAh P-Series Battery | |
| 光驅 | ||
| 532066-B21 | HP DL360 SL 12.7mm SATA DVD | |
| 532068-B21 | HP DL360 SL 12.7mm SATA DVD-RW Optical kit | |
| 磁帶機 | ||
| AJ830A | HP DAT 320 SAS Internal Tape Drive | |
| BL536A | HP 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader | |
| BL537A | HP MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library | |
| BL538A | HP MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library | |
| EH847A | HP StorageWorks Ultrium 920 SAS Internal Tape Drive | |
| EH946B | HP StorageWorks LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit | |
| EJ014A | HP StorageWorks LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount | |
| 導軌 | ||
| AF092A | HP 10642 G2 1200mm deep Shock Rack | |
| AF094A | HP 10647 G2 1200mm deep Shock Rack | |
| 線纜 | ||
| 496013-B21 | HP Mini SAS to Mini SAS 28in Cable Assembly | |
| 627121-B21 | HP Chipset SATA Cable Kit | |
| AF556A | Nema 5-15P to IEC320-C13 | |
| AF573A | HP 2m 10A C13-C14 Redundant Jumper Cord | |
| 其它 | ||
| 252663-D72 | HP 24A High Voltage Modular Power Distribution Unit (North America, Japan) - 4.9 kVA Modular PDU, 24A | |
| 252663-D73 | HP Modular Power Distribution Units (Zero-U/1U Modular PDU) - 8.3 kVA Modular PDU, 40A (USA, Canada, Japan) | |
| 365403-B21 | 1U ambidextrous cable management arm | |
| 418800-B21 | HP StorageWorks 70 Modular Smart Array | |
| 433257-B21 | HP Cluster Management Utility Media | |
| 436222-B21 | HP Insight Software Media Kit | |
| 452148-B22 | HP Insight Control suite, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 452148-S22 | HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License S-Buy | |
| 452151-B21 | HP Insight Rapid Deployment software No Media 1-Server License including 1 year of 24x7 Technical Support and Updates | |
| 462830-B21 | HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller | |
| 462832-B21 | HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller | |
| 462834-B21 | HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller | |
| 487204-B21 | HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller | |
| 488069-B21 | HP Trusted Platform Module Option | |
| 491191-B21 | HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller | |
| 491193-B21 | HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller | |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License | |
| 516471-B21 | HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License | |
| 518824-B21 | PCI-X Riser option | |
| 519254-B21 | HP DL360G6 PCI Thermal Power Cable Kit | |
| 579237-B21 | HP ProLiant DL360 G7 Configure-to-order Server | |
| 580387-B21 | HP 4GB Secure Digital High Capacity Flash Media Kit | |
| 582765-B21 | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License | |
| 593829-B21 | HP DL360G7 X5650 HPM FIO Perf Pack | |
| 600278-B21 | HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers | |
| 600279-B21 | HP 320GB Multi Level Cell PCIe ioDrive for ProLiant Servers | |
| 600281-B21 | HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 600282-B21 | HP 640GB Multi Level Cell PCIe ioDrive Duo for ProLiant Servers | |
| 631341-B21 | HP USB BFR with PVC Free Keyboard/Mouse Kit | |
| 636366-B21 | HP DL360G7 X5675 HPM FIO Perf Pack | |
| 641027-B21 | HP 1.28TB Multi Level Cell PCIe IO Accelerator | |
| 641749-B21 | HP ProLiant DL360 G7 Performance Configure-to-order Server | |
| AF001A | 10642 G2 (42U) Rack Cabinet - Pallet | |
| AF002A | 10642 G2 (42U) Rack Cabinet - Shock Pallet | |
| AF426A | HP Rack Uninterruptible Power System R5500 (North America or Japan) | |
| AF504A | HP monitored single Power Distribution Unit (PDU) S1324 (North America, Japan) - 3PH, 24A, 8.6 kVA | |
| AF506A | HP Single Input 1 Phase 40A Monitored Power Distribution Unit (North America, Japan) | |
| AF616A | HP Server Console 0x2x8 Port Analog Switch | |
| AF617A | HP Server Console 0x2x16 Port Analog Switch | |
| AF618A | HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF619A | HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software | |
| AF621A | HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AF622A | HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software | |
| AJ767A | HP RDX320 Internal Removable Disk Backup System | |
| AJ934A | HP RDX500 Internal Removable Disk Backup System | |
| AJ940A | HP D2600 Disk Enclosure | |
| AJ941A | HP D2700 Disk Enclosure | |
| AP835B | HP DAT 320 USB in 1U Rack-mount Kit | |
| AZ870A | HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor | |
| AZ885A | HP TFT7600 G2 KVM Console Rackmount Keyboard TAA Monitor | |
| DT528A#ABA | HP Keyboard (USB) standard 2004 | |
| EH938A | HP StorageWorks D2D4004i Backup System | |
| EH993B | HP D2D4112 Backup System | |
| EJ001B | HP D2D2502i Backup System | |
| EJ002B | HP D2D2504i Backup System | |
| HZ760E | HP SBuy3y24x7 24hCTRProliant DL36xHW Sup | |
| QL803A | HP Cluster Management Utility Flexible License | |
| T9074ASE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License S-Buy | |
| T9074BAE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License | |
| T9082AAE | HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License | |
| TA850AAE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License | |
| TC203A | HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License | |
| TC208A | HP Insight Control for Linux Media Kit | |
| TC209A | HP Insight Control for Linux including 1yr 24x7 Support Single Server License | |
| TC213AAE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License | |
| TC213ASE | HP Insight Control for Linux including 1yr 24x7 Support Electronic License S-Buy | |
| TC275A | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License | |
| TC278AAE | HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License | |
| TC293B | HP High Performance Computing Linux Value Pack 1 Processor Flexible License | |
| TC294A | HP High Performance Computing Linux Value Pack Media Kit | |
| TC330AAE | HP Data Protector Express V5.0 for 1 Server E-LTU | |
| TC331AAE | HP Data Protector Express V5.0 for 3 Servers E-LTU | |
| TC332AAE | HP Data Protector Express V5.0 for 10 Servers E-LTU | |
| TC333AAE | HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU | |
| U4496E | 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | |
| U4497E | 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4498E | 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | |
| U4506E | Hardware Installation, Electronic | |
| U4507E | Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic | |
| U4509E | Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| U6310E | Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic | |
| UE891E | S-Buy 4-Hour Onsite Response, 13-Hour x 5-Day Coverage, 3 years | |
| UE892E | S-Buy 4-Hour Onsite Response, 24-Hour x 7-Day Coverage, 3 years | |
| UM360E | S-Buy 6-Hour Call to Repair, 24-Hour x 7-Day Coverage, 3 years | |
| UP711E | HP 3 year 24 hour 24x7 Call to Repair ProLiant DL36x Hardware Support | |
| UP712E | HP 4 year 24 hour 24x7 Call to Repair ProLiant DL36x Hardware Support | |
| UP713E | HP 5 year 24 hour 24x7 Call to Repair ProLiant DL36x Hardware Support |
